Yield In Manufacturing: Benchmarks, Formulas & Improvement Strategies
Averroes
May 18, 2026
A single percentage point of yield can swing a P&L by half a million dollars a year.
Industry models put the total annual impact of a 1% yield drop at around $500K once you factor in material loss, lost revenue, and overhead spent on units that ultimately got scrapped.
That math is why yield in manufacturing gets the attention it does (and why the gap between average and world-class is wider than most plants realize).
We’ll cover the types, the formulas, and the levers.
Key Notes
Yield in manufacturing splits into three distinct metrics: First Pass Yield, Overall Yield, and Rolled Throughput Yield.
Average mature lines run 93–96% first-pass yield, while world-class operations sustain 98.5%+.
The six improvement levers that work universally: SPC, root-cause analysis, closed-loop feedback, training, predictive analytics, AI-based inspection.

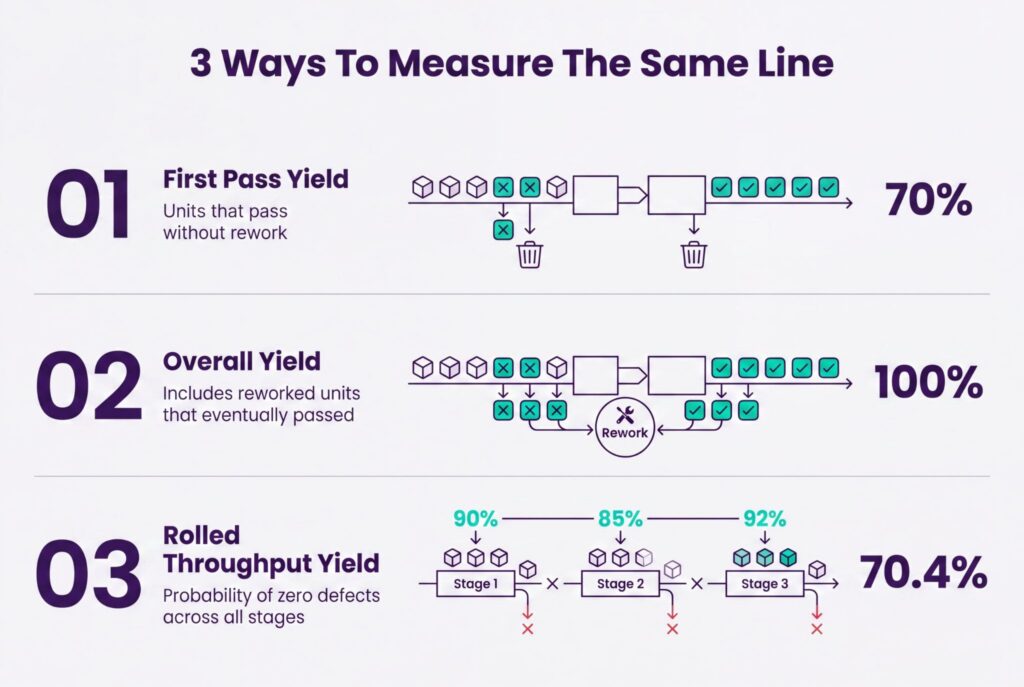

The 3 Types of Yield Every Manufacturer Tracks
Yield in manufacturing isn’t a single number.
It’s three distinct metrics that tell different stories about what’s happening on the line. Most plants track all three because each one exposes a different problem.
First Pass Yield (FPY) / First Time Yield (FTY)
First Pass Yield measures the percentage of units that complete the process without requiring rework or being scrapped.
It’s the strictest measure of process health because rework doesn’t count as success.
What it catches: Process problems early, before they get hidden by rework operations.
When to use it: As your default daily/weekly health metric for any production line.
Why it matters: A line with high Overall Yield but low FPY is burning labor on rework you shouldn’t be doing.
Overall Yield (Final Yield)
Overall Yield includes units that initially failed but were reworked and eventually passed inspection.
It’s a friendlier number, but it can hide real process drift behind the cost of rework.
What it catches: Final shipped quality only.
When to use it: For customer-facing quality reporting and overall throughput planning.
Why it matters: The gap between Overall Yield and FPY tells you exactly how much rework your process is generating.
Rolled Throughput Yield (RTY)
Rolled Throughput Yield is the probability that a single unit passes through every stage of a multi-step process without a defect.
It’s calculated by multiplying each stage’s individual yield together.
What it catches: Cumulative drift across multi-step processes.
When to use it: Any process with 3+ sequential stages, especially semiconductors, electronics, and pharmaceuticals.
Why it matters: Stages can look fine in isolation while RTY quietly tanks.
The Production Yield Formula & How To Calculate It
The production yield formula is straightforward. What changes the answer is where you apply it.
The Core Formula
Yield (%) = (Good Units / Total Units Started) × 100
A worked example to anchor it:
100 units start the process
96 pass first inspection
4 are scrapped or sent to rework
First Pass Yield = 96%. Scrap rate = 4%.
That’s the simple version (the complications start when your process has more than one stage).
The RTY Formula for Multi-Step Processes
For multi-step processes, you multiply each stage’s yield together:
A 5-stage process where each stage runs at 98% yield doesn’t have a 98% rolled throughput yield. It has: 0.98 × 0.98 × 0.98 × 0.98 × 0.98 = 0.904, or 90.4%
Ten percent of your starts are losing somewhere across the line, even though every individual stage looks healthy in isolation. This is why mature manufacturing organizations track yield by stage, not just at final inspection.
Yield In Manufacturing Benchmarks Across Industries
Knowing where your yield in manufacturing sits relative to industry benchmarks tells you whether you have a small problem or a structural one.
There’s no universal “average” across all manufacturing, but a few directional bands hold up:
Yield Performance Tier
First Pass Yield
What It Looks Like
Average / OK mature line
93–96%
Most discrete and process manufacturing baseline
Good / optimized line
97–98%
Common continuous improvement target
World-class high-volume precision
98.5–99%+
Best-in-class solar, electronics, medical devices
Industry-Specific Context:
Discrete and process manufacturing typically lands in the low-to-mid 90s for mature operations.
Solar, electronics, and medical devices push above 98.5% once ramp-up is complete. Below 98% in steady state is treated as a red flag.
Semiconductors vary wildly because the metric depends heavily on whether you’re measuring per-step yield or final die yield, but per-step yields routinely sit above 99.9%.
The Financial Math Behind Every Yield Percentage Point
Small yield shifts produce outsized financial impact.
That’s why fabs invest millions to gain fractions of a percentage point – the math works.
A Concrete Example
Take a solar manufacturing facility producing 200,000 units a year, with $80 material cost and $150 sale price per unit.
A 1% scrap rate translates to:
Financial Impact Category
Annual Cost
Direct material loss (scrapped units)
~$160,000
Lost revenue opportunity
~$300,000
Total impact (including overhead and operating costs)
~$460,000
That’s the cost of a one percentage point yield drop in a single mid-sized factory. Move the dial half a point and you’re looking at hundreds of thousands annually.
Why The Multiplier Effect Hits So Hard
Every scrapped unit consumes multiple resources at once:
Raw material inputs
Labor hours
Machine time
Energy consumption
Lost sales opportunity
The Financial Damage Isn’t Just The Cost Of The Unit Itself…
It’s the cost of everything you spent producing something that doesn’t ship.
The semiconductor parallel is starker: even a 0.1% yield improvement at scale generates millions in additional revenue, which is why semiconductor yield improvement work pays back faster than almost any other capital deployment in a fab.
The Four Main Drivers of Yield Loss
Most yield in manufacturing problems trace back to four root cause categories.
Knowing which one you’re dealing with is the difference between a targeted fix and a generic “do better” initiative that goes nowhere.
How To Improve Yield In Manufacturing – Six Universal Levers
How to improve yield in manufacturing comes down to six proven levers that work across industries.
The order matters:
Foundational levers come first because the advanced ones don’t work without them.
1. Statistical Process Control (SPC)
SPC monitors key parameters with control charts and triggers intervention when the process drifts toward spec limits.
It’s foundational because it catches drift before it produces defects – the cheapest yield to save is the yield you never lose.
2. Root-Cause Analysis On Scrap Categories
Pareto charts on scrap classifications point you to the few defect types causing the most yield loss. Vague “quality initiatives” rarely work.
Targeted root-cause work on the top three scrap categories almost always does.
3. Closed-Loop Feedback From Inspection To Process
Inspection data fed back to upstream process control allows real-time parameter adjustment.
This is where modern fabs separate from older operations – the inspection layer doesn’t just catch defects, it actively prevents them.
4. Operator Training & Standard Work
Even highly automated lines depend on operators for setup, changeovers, and intervention.
Standard work documentation plus regular training is one of the highest-ROI yield investments – and it’s almost always underfunded.
5. Predictive Analytics & Virtual Metrology
Machine learning models predict yield outcomes from upstream process data, flagging excursions before they hit final test. Virtual metrology in particular lets you estimate critical dimensions and defect rates without running physical measurements on every wafer or unit.
6. AI Visual Inspection
AI inspection catches subtle defects that traditional rule-based and template-matching systems miss. It also handles process variation gracefully – false positive rates drop, and inspection queues stop filling up with non-issues.
This is where AI-powered platforms integrate alongside existing inspection equipment.
How AI Is Changing Yield Improvement
AI is collapsing the diagnostic cycle for yield issues from days to hours.
Three applications are showing up most consistently across leading manufacturers:
Automated wafer map pattern recognition: Distinguishing systematic defects (which point to a specific tool or recipe) from random defects (which need a different intervention).
Predictive models for yield excursions: Flagging upcoming problems from upstream process data before they show up in final test.
No-code AI platforms: Letting process engineers build their own optimization models without standing up a data science team or hiring at $175K-$230K salaries.
This Is Where Averroes Plugs In…
AI visual inspection layers on top of existing equipment to:
catch subtle defects across the line
reduce false positives
feed real-time data back into process control
The hardware keeps doing what it does.
The AI handles the parts that scale poorly with manual review.
What’s One Percentage Point Worth To You?
AI inspection closes the yield gap with your existing tools.
Yield In Manufacturing FAQs
How can AI improve yield in manufacturing?
AI improves yield in manufacturing primarily through three mechanisms: catching subtle defects that rule-based and template-matching inspection systems miss, predicting yield excursions from upstream process data before they hit final test, and reducing false positives that bury operators in unnecessary review queues. Leading fabs report problem-resolution times dropping from days to hours after deploying AI-based inspection and analytics.
How long does it take to ramp yield in a new semiconductor fab?
Yield ramp in a new semiconductor fab typically takes 12–24 months from initial pilot production to high-volume manufacturing maturity, though leading-edge logic nodes (3nm, 2nm) can push closer to 36 months. The progression follows an S-curve – slow at first, accelerating through the learning phase, then plateauing as the process approaches mature yield. Shortening that curve is one of the highest-leverage investments in fab operations.
What’s the difference between yield rate and yield efficiency in manufacturing?
Yield rate measures the percentage of usable products from total units produced, while yield efficiency assesses how effectively inputs (materials, labor, machine time) are converted into saleable output. Yield rate is a quality metric. Yield efficiency is a resource utilization metric. Most plants need both – high yield rate with low efficiency means you’re producing good units but burning resources doing it.
What is a good first pass yield benchmark for PCB manufacturing?
A good first pass yield benchmark for PCB manufacturing is typically 95–98% for mature lines, with best-in-class operations sustaining 98.5%+ at steady state. Complex multi-layer boards and HDI (high-density interconnect) designs run lower (often 92–95%) because layer count and via density both compound defect probability. Below 92% in stable production is usually a sign of structural process or supplier issues.
Conclusion
Yield in manufacturing rewards compound work – the SPC charts, the scrap classification reviews, the operator training.
The gap between an average line at 93–96% and a world-class operation above 98.5% gets closed by dozens of small wins compounding across stages, supported by the right diagnostic framework and the right data feeding back into process control.
Rolled Throughput Yield is the metric that catches what stage-level reporting hides. The four drivers of yield loss are where the diagnostic work pays off.
If AI visual inspection sounds like a lever worth pulling on your line, book a free demo and we’ll show you what it catches on your data.
