Chips don’t start as circuits, they start as patterns of light.
Photolithography is the stage that prints those patterns onto silicon wafers with near-impossible precision, shaping every transistor and interconnect that makes devices work. It’s the reason we can pack billions of features into something smaller than your fingernail.
We’ll break down the photolithography process in semiconductor manufacturing – how it works, what it requires, and why it defines modern electronics.
Key Notes
Ten-step process from wafer cleaning through resist stripping – repeated 50+ times per chip.
EUV lithography at 13.5nm wavelength enables advanced 5nm and 3nm chip nodes.
Nanometer-scale alignment and overlay precision are required between multiple circuit layers.
Ultra-clean ISO Class 3-4 cleanrooms are essential to prevent particle contamination defects.

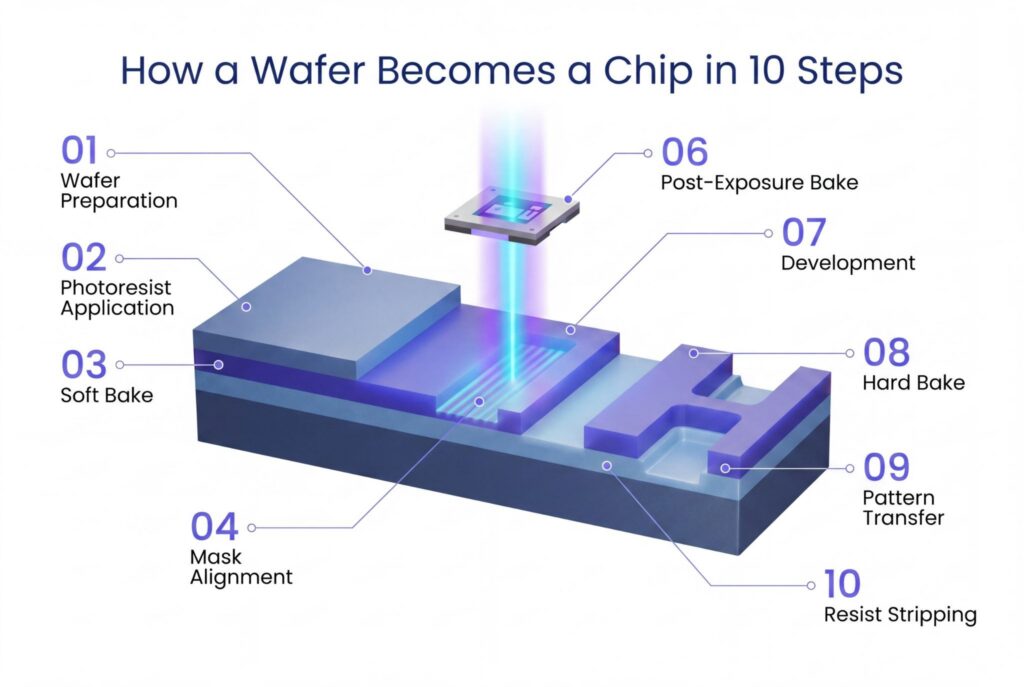

Step-by-Step Photolithography Process
Here’s how fabs turn circuit designs into patterns on silicon:
1. Wafer Preparation and Cleaning
Wafers are cleaned to remove contaminants that could interfere with adhesion or pattern transfer. Sometimes an oxide layer is added as a base.
2. Photoresist Application
A thin layer of photoresist is applied via spin coating. Thickness is precisely controlled to ensure uniform exposure.
3. Soft Bake
The wafer is gently heated to remove solvents and improve resist adhesion.
4. Mask Alignment
A photomask (or reticle) containing the circuit design is aligned with the wafer. Precision here is everything—misalignment can ruin the device.
5. Exposure
Ultraviolet (UV) or extreme ultraviolet (EUV) light shines through the mask, altering the photoresist. Positive resists become soluble in exposed regions, while negative resists harden.
6. Post-Exposure Bake
This stabilizes chemical changes in the photoresist for consistent development.
7. Development
A developer solution washes away either the exposed or unexposed regions, leaving behind a patterned resist mask.
8. Hard Bake
The remaining resist is hardened to survive etching or implantation.
9. Pattern Transfer
Using etching or ion implantation, the pattern is transferred into the wafer surface.
10. Resist Stripping
The resist is removed, leaving the circuit layer ready for the next cycle.
This process is repeated dozens of times – often 50+ cycles – to build up the complex, multilayered structure of a modern integrated circuit.
Core Materials and Chemicals Used
Photolithography depends on specialized materials that must be pure and consistent at nanometer scales:
Photoresists: Light-sensitive polymers that change solubility under exposure. Modern EUV resists often contain tin, hafnium, or zirconium for better light absorption.
Developers: Chemicals like tetramethylammonium hydroxide (TMAH) dissolve targeted regions of photoresist.
Photomasks/Reticles: Quartz or silica plates coated with chrome patterns. They act as the “blueprint” for each layer.
Wafers: Ultra-flat silicon slices with near-perfect surfaces to ensure consistent patterning.
Key Equipment in Photolithography
The tools that make lithography possible are some of the most advanced machines ever built:
Steppers: Expose small areas of a wafer at a time, stepping across until the wafer is complete.
Scanners: Use a slit of light and synchronized stage movement to scan across the wafer, enabling larger fields and higher resolution.
Deep Ultraviolet (DUV) Systems: Use 248 nm (KrF) or 193 nm (ArF) lasers, including immersion lithography for higher resolution.
Extreme Ultraviolet (EUV) Systems: Operate at 13.5 nm wavelength, critical for 5 nm and 3 nm nodes.
Supporting equipment includes spin coaters, developers, etchers, and metrology tools – all working in sync inside cleanrooms.
Wavelengths and Resolution Limits
Resolution in photolithography is limited by physics, specifically the wavelength of light. The shorter the wavelength, the smaller the feature size:
i-line (365 nm): Used for legacy nodes.
DUV (248 nm and 193 nm): Still widely used for mainstream chips down to ~7 nm.
EUV (13.5 nm): Enables advanced nodes at 5 nm, 3 nm, and beyond.
The Rayleigh equation captures the relationship: CD = k1 × (λ / NA)
Where CD is critical dimension, λ is wavelength, NA is numerical aperture, and k1 reflects process factors. Smaller λ and larger NA enable finer features, but demand more advanced optics, resists, and process control.
Alignment and Overlay
Photolithography isn’t just about printing patterns, but about stacking them with nanometer precision:
Alignment: Optical systems detect alignment marks from earlier layers to position the wafer correctly.
Overlay: The measure of how accurately a new layer aligns with the one beneath it. Errors cause shorts, opens, and yield loss.
Advanced fabs use sensors, interferometry, and automated process control (APC) systems to achieve overlay accuracy at the nanometer scale.
Critical Process Parameters
Semiconductor fabs must control a dozen variables simultaneously, each within extreme tolerances:
Exposure dose (too high/low distorts features)
Focus (must be accurate within nanometers)
Photoresist thickness and uniformity
Bake times and temperatures
Developer concentration and chemistry
Illumination settings
Environmental factors like temperature, humidity, and particle count
Tight control of these parameters ensures yield, consistency, and scalability.
Common Defects & Challenges
Defects are the enemy of yield. Common culprits include:
Particles/Contamination: Even a speck of dust can destroy a die
Photoresist Issues: Cracking, uneven coating, or improper curing
Exposure Errors: Incorrect dose or focus blurs features
Mask Defects: Flaws on a reticle replicate across entire wafers
Overlay Errors: Misalignment between layers
Stochastic Defects in EUV: Random variations due to limited photon counts at short wavelengths
Each defect can render entire wafers unusable, raising costs dramatically.
Stop Losing Yield To Lithography Defects
Catch anomalies at 99% accuracy before wafers are wasted.
Cleanroom Conditions
Photolithography is only possible in ultra-clean environments:
Particle control: ISO Class 3–4 cleanrooms allow only a handful of particles per cubic meter.
Air filtration: HEPA/ULPA filters and laminar flow keep air particle-free.
Temperature & humidity: Must be controlled within tight tolerances to avoid wafer expansion or resist instability.
Even human operators are potential contaminants – clean suits, masks, and strict entry protocols are mandatory.
Alternative Patterning Techniques
While photolithography dominates, other methods fill important niches:
Electron Beam Lithography (EBL): Ultra-high resolution (<10 nm) but slow and costly. Used for mask making and research.
Nanoimprint Lithography (NIL): Uses physical molds to imprint patterns. High resolution, but mold defects are a risk.
Feature
Photolithography
EBL
NIL
Patterning Method
Light via mask
Direct electron
Mechanical mold
Resolution
~10–100 nm
<10 nm
<10 nm
Throughput
Very high
Low
Moderate
Mask Requirement
Yes
No
Mold required
Typical Use
Mass production
R&D, masks
Niche nanoscale
Frequently Asked Questions
How long does a single photolithography cycle take?
Depending on wafer size, tool type, and process complexity, one lithography cycle typically takes a few minutes per wafer. Since modern chips require 50+ layers, the cumulative time is substantial, making throughput optimization critical.
Why are photolithography tools among the most expensive equipment in a fab?
These systems combine high-powered lasers, precision optics, and nanometer-scale alignment controls. EUV machines in particular cost hundreds of millions of dollars due to their complexity, limited suppliers, and specialized components.
Can photolithography be used with materials other than silicon?
Yes. While silicon is dominant, photolithography also works with compound semiconductors like gallium arsenide or silicon carbide, which are increasingly important for high-frequency, high-power, or automotive applications.
How does photolithography impact chip power efficiency?
By enabling smaller transistors and denser circuits, photolithography allows chips to deliver higher performance while consuming less power. This scaling is central to energy-efficient devices, from smartphones to data centers.
Conclusion
The photolithography process in semiconductor manufacturing is the stage where circuit designs take physical shape on silicon wafers. It’s a careful sequence of coating, masking, exposure, and etching that demands flawless precision.
From the role of photoresists and reticles to the use of DUV and EUV systems, every step shapes how fast, efficient, and reliable modern chips can be.
For fabs, the challenge is clear: even minor defects at this stage can cost millions in lost yield. Averroes.ai helps manufacturers catch anomalies at 99% accuracy, cut reinspection hours, and protect wafer output.
