Industry Leading
AI-Powered

RevolutionaryPhotomask InspectionTechnology

Achieve 99.7% defect detection accuracy with our advanced AI-powered inspection system. Detect defects as small as 5nm while reducing false positives by 95%.

Subtract

99.7% Accuracy

Industry Best Performance

5nm

Minimum Defect Detection

99%

Reduction in False Positives

60%

Faster Inspection Speed

$50M+

Annual Cost Savings

The Semiconductor Quality Challenge

As technology nodes shrink to 3nm and below, even microscopic photomask defects can cause catastrophic yield losses and multi-million dollar production delays.

Traditional Challenges

  • 85-92% detection accuracy
  • High false positive rates (2-5%)
  • Manual parameter tuning required
  • Weeks of setup for new products

Our AI Solution

  • 99.7% detection accuracy
  • Ultra-low false positives (<0.05%)
  • Self-learning algorithms
  • 2-3 days setup time

Business Impact

  • $50M+ annual cost savings
  • 60% faster time-to-market
  • 95% reduction in yield losses
  • 24/7 automated operation

Why Deep Learning Changes Everything

Our advanced AI technology delivers unprecedented accuracy and efficiency compared to traditional inspection methods.

Technology Comparison

See how our deep learning approach outperforms traditional methods

Performance MetricTraditional Rule-BasedOur Deep Learning AI
Defect Detection Accuracy85-92%99.7%
False Positive Rate2-5%<0.05%
Processing Speed500-1000ms<25ms
Minimum Defect Size20-50nm5nm
Setup Time (new product)2-4 weeks2-3 days
AdaptabilityManual programmingSelf-learning

Traditional Rule-Based Systems

  • • Threshold-based detection algorithms
  • • Manual parameter tuning required
  • • Limited pattern recognition capability
  • • High maintenance overhead
  • • Poor adaptability to new defect types
  • • Requires extensive expert knowledge

Our Deep Learning AI

  • • Advanced convolutional neural networks
  • • Vision transformer architecture
  • • Few-shot learning capabilities
  • • Self-optimizing algorithms
  • • Multi-modal data fusion
  • • Continuous learning and adaptation
  • • Explainable AI for transparency
  • • Uncertainty quantification

Advanced Inspection Capabilities

Comprehensive defect detection for all critical photomask applications

Ultra-High Resolution

Sub-5nm defect detection with multi-wavelength illumination

  • • 193nm DUV, 248nm KrF, 365nm i-line
  • • 0.25-0.90 NA objective lenses
  • • 5nm minimum defect detection
  • • Brightfield, darkfield, polarized modes

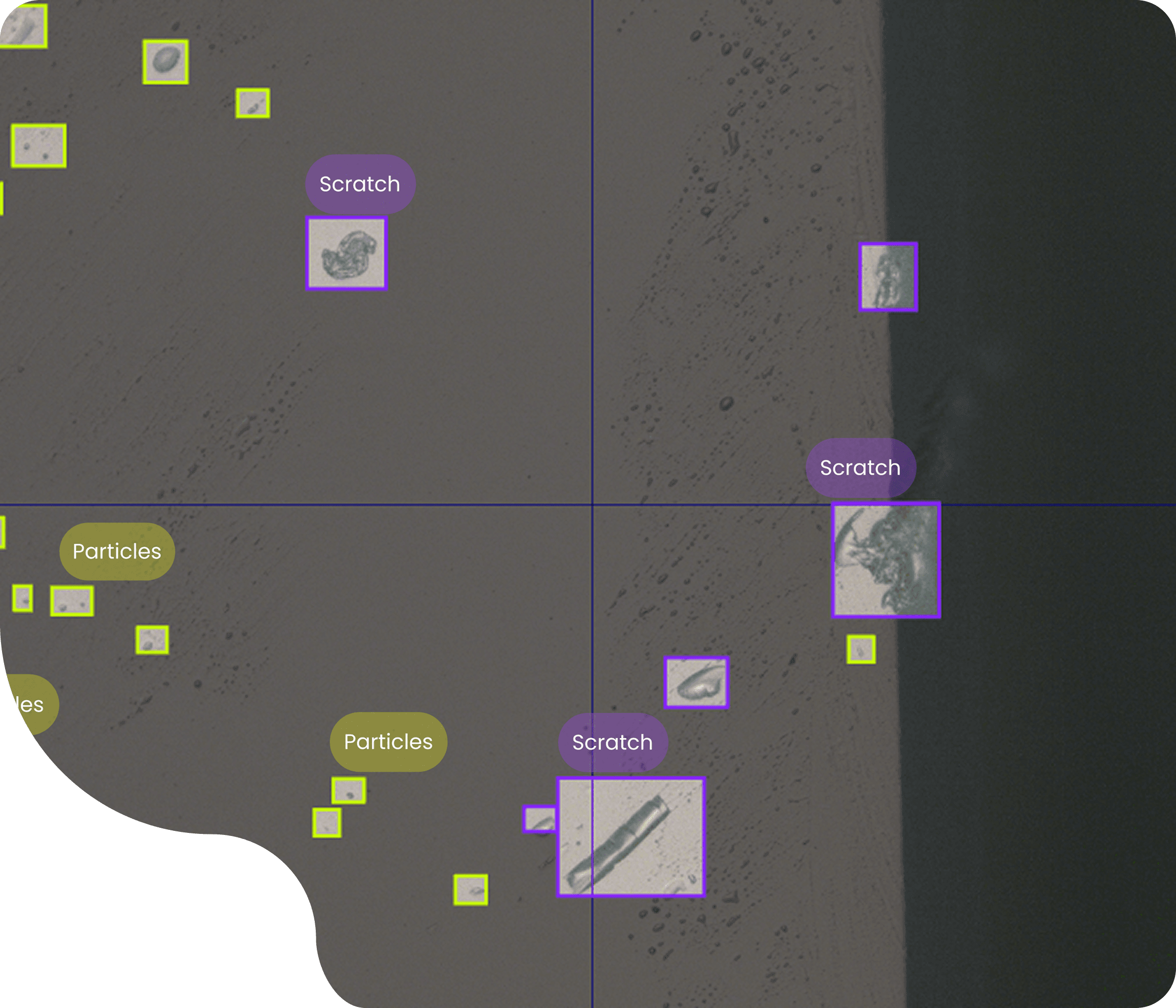

AI-Powered Detection

Advanced machine learning for intelligent classification

  • • Real-time pattern recognition
  • • 99.7% detection accuracy
  • • <0.05% false positive rate
  • • Automated defect categorization

High Throughput

Production-scale performance with 24/7 operation

  • • 150 mm²/hour scan rate
  • • <30 seconds per die inspection
  • • Parallel processing capability
  • • Automated substrate handling

Ready to Transform Your Quality Control?

Join the leading semiconductor manufacturers who trust PhotoMask Pro for their most critical applications.

Frequently asked questions
AI-powered visual inspection utilizes advanced algorithms to automate defect detection and classification, enhancing quality control and operational efficiency in semiconductor manufacturing.
