A modern chip moves through hundreds to thousands of tightly controlled steps before it ever ships.
The semiconductor manufacturing process is the chain reaction that turns purified silicon into a packaged integrated circuit – every link has to hold or the wafer doesn’t sell.
Funny side note: This all started with a 1916 accident. Jan Czochralski dipped his pen into molten tin instead of his inkwell, pulled out a single-crystal filament, and gave us the method we still use today.
We’ll walk through the full semiconductor process flow.
Key Notes
The semiconductor manufacturing process splits into three macro phases: wafer preparation, fab processing (FEOL + BEOL), and assembly/test.
Front-end of line builds the transistors, while back-end of line wires them together with 10–15+ metal layers.
Photolithography, etching, deposition, and doping cycle repeatedly through both FEOL and BEOL.
3 Macro Phases of the Semiconductor Manufacturing Process
The semiconductor manufacturing process splits into three macro phases.
Each phase has its own tools, defect modes, and control regimes – which is why fabs are organized around them rather than as one continuous line.
The FEOL/BEOL Distinction Matters Because:
The two halves of the fab look almost nothing alike.
FEOL is about transistor electrical properties (thin films, implants, gate stacks).
BEOL is about routing (etching trenches into dielectrics and filling them with copper).
Different tools, different defectivity profiles, different yield-killing failure modes.

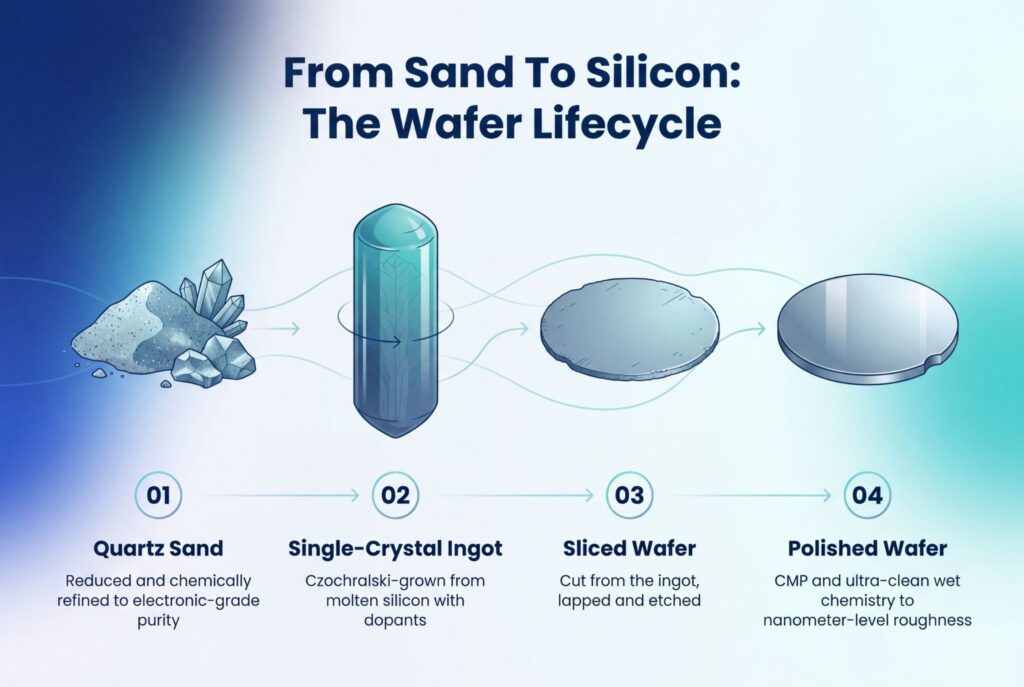

Step 1: From Sand To Silicon Wafer
The semiconductor fabrication process starts with turning sand into a mirror-polished single-crystal wafer. This sounds simple. It is not.
Silicon Purification
Quartz sand gets reduced in an electric arc furnace with carbon to produce metallurgical-grade silicon at around 98–99% purity.
From there, chemical refinement (usually through trichlorosilane intermediates) pushes it to electronic-grade polysilicon with impurity levels in the parts-per-billion range.
Czochralski Ingot Growth
High-purity polysilicon gets melted in a quartz crucible.
A small seed crystal is dipped into the melt and slowly pulled and rotated, producing a single-crystal ingot 200–300mm in diameter. Dopants like boron or phosphorus go into the melt to set the wafer’s resistivity and type.
Slicing & Shaping
The ingot gets ground to precise diameter, flatted or notched for orientation, then sliced into wafers a few hundred micrometers thick with a multi-wire saw.
Each slice gets lapped and etched to remove saw damage.
Polishing & Cleaning
Chemical-mechanical polishing (CMP) brings the surface to nanometer-level roughness.
Ultra-clean wet chemistry removes particles and metallic contaminants to the levels modern nodes demand.
Step 2: Front-End of Line: Building the Transistors
Front-end of line is where the transistors take shape in the silicon.
Everything before this was preparation.
Everything after this is wiring.
Isolation & Wells
Shallow trench isolation (STI) replaces older LOCOS methods at modern nodes.
Lithography and etch carve trenches into the silicon where isolation is needed, then CVD fills them with oxide and CMP planarizes the surface.
Ion implantation through masks forms n-wells and p-wells to house complementary MOS transistors.
Gate Stack & Channel
The gate dielectric used to be thermal SiO₂.
At advanced nodes, high-k materials like HfO₂ replace it to cut leakage while maintaining capacitance. A metal gate stack (HKMG) sits on top in modern processes, replacing the older polysilicon gates.
Photolithography and etching define the narrow gate lines that set transistor channel length.
Source/Drain & Silicide
After gate formation, sidewall spacers go down via conformal deposition and anisotropic etch.
Lightly doped drain (LDD) and halo implants manage electric fields.
High-dose implants form the source and drain regions.
A thin metal (Ni, Co, or Ti) gets deposited and annealed to form low-resistance silicide contacts on the source, drain, and gate.

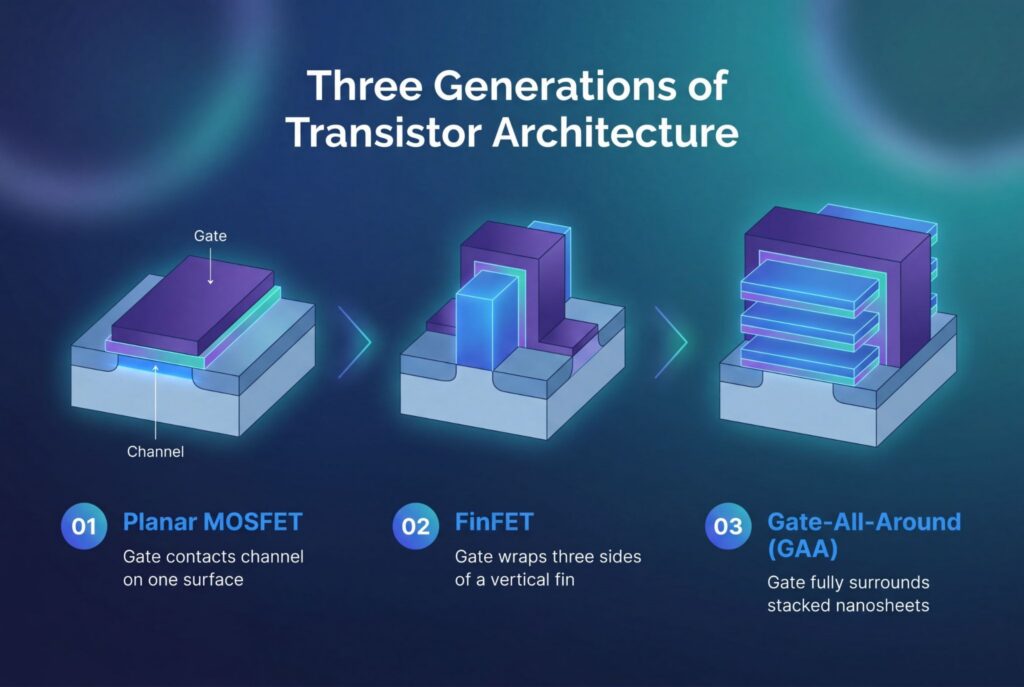

Advanced Architectures
Planar transistors stopped scaling around 22nm.
Modern leading-edge nodes use:
FinFETs (silicon fins etched out of the substrate, with the gate wrapping around three sides for stronger electrostatic control)
Gate-all-around (GAA) / nanosheet FETs (stacked horizontal nanosheets fully surrounded by gate material, used at 3nm and below)
Both require complex epitaxy, selective etches, and patterning precision that wasn’t possible a generation ago.
Step 3: Photolithography (How Patterns Get Printed)
Photolithography defines every pattern in the semiconductor process – gates, contacts, vias, metal lines.
If lithography drifts, everything downstream inherits the error.

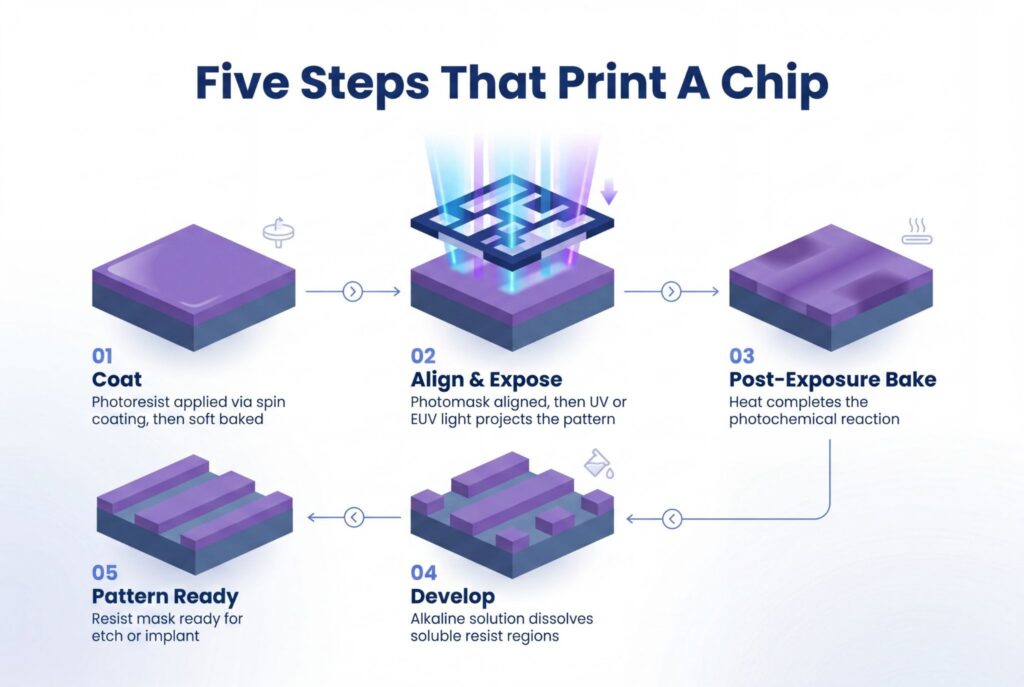

The Basic Flow:
EUV lithography at 13.5nm replaces multi-patterning DUV steps at leading nodes (7nm, 5nm, 3nm). Multi-patterning, phase-shift masks, and off-axis illumination push feature sizes well below the wavelength of the light hitting the wafer.
Step 4: Etching & Deposition
Etching removes material. Deposition adds it.
The two cycle through both FEOL and BEOL dozens of times to build up each layer.
Etching
Wet etching: Liquid chemistry, isotropic (etches in all directions), simple and high throughput but less controllable on small features.
Dry/plasma etching: Reactive ions accelerated toward the wafer, anisotropic (etches straight down), used for everything precise.
After etching, leftover resist and polymer residues get stripped in plasma or wet chemistry.
Deposition
Chemical vapor deposition (CVD): Gas-phase precursors deposit dielectrics, polysilicon, and barrier metals at elevated temperature.
Physical vapor deposition (PVD): Sputtering for metal layers like Ti, Ta, copper seed, aluminum, tungsten.
Atomic layer deposition (ALD): Atomic-precision thin films for high-k dielectrics, liners, and barriers.
Between layers, CMP planarizes the surface so the next layer of lithography has a flat starting point. Skipping CMP means topography compounds upward and ruins yield.
Step 5: Ion Implantation & Doping
Ion implantation is how silicon goes from being a substrate to being electrically functional.
Doping introduces the impurities that create n-type and p-type regions – the foundation of every transistor on the wafer.
How The Implantation Beam Works
A beamline accelerates dopant ions to high energies and directs them into exposed silicon areas defined by resist or hard masks.
The four parameters that control the outcome:
Dopant selection: Boron for p-type regions, phosphorus or arsenic for n-type
Dose: Controls how many ions land in the silicon
Energy: Controls how deep the ions penetrate
Tilt and rotation: Reduce channeling effects where ions travel too far along crystal planes

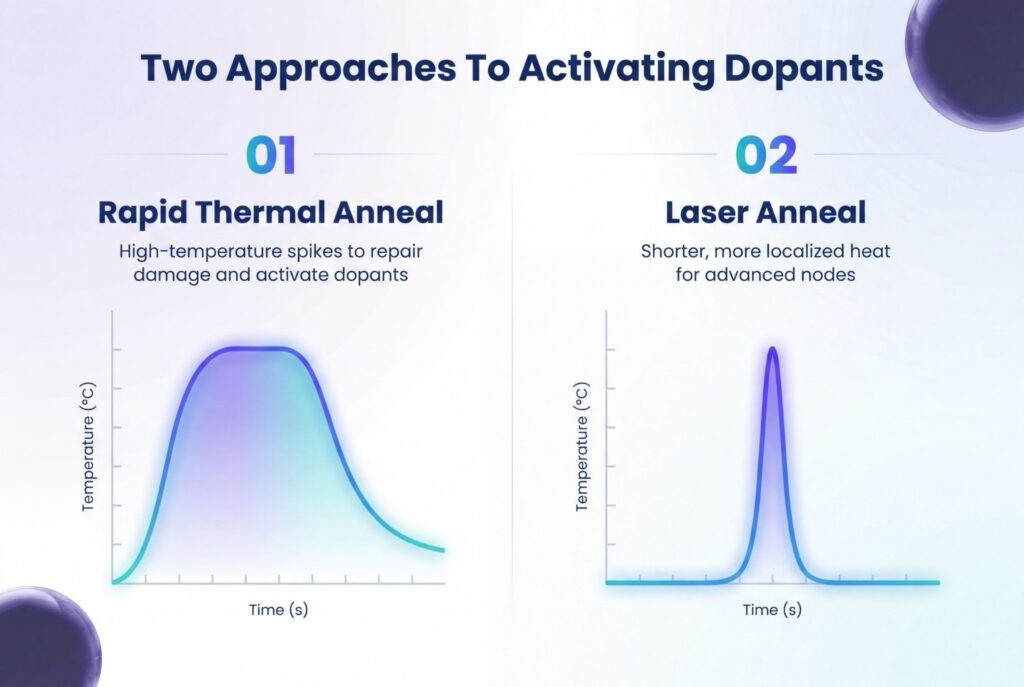

Annealing & Activation
After implantation, the silicon lattice is damaged and the dopants are sitting in the wrong positions to conduct electricity. Annealing fixes both problems.
Why Thermal Budget Matters
Too much heat and the dopants diffuse where they shouldn’t. Junctions blur, transistor performance suffers, and at advanced nodes the device stops working entirely.
Modern processes manage thermal budget by:
Using shorter anneal pulses
Switching to laser anneal for the most aggressive nodes
Sequencing implants and anneals to minimize cumulative heat exposure
Step 6: Back-End of Line (Wiring The Chip)
Back-end of line (BEOL) builds the multilayer metal stack that connects trillions of transistors into functional circuits. This is where the semiconductor process gets visually wild – modern chips have 10 to 15+ metal layers stacked on top of each other.
The Five-Step Build Cycle For Every Metal Layer
Each metal layer goes through the same sequence before the next one can be built on top:
Deposit low-k dielectric to minimize capacitance between metal lines
Etch vias and trenches with lithography and plasma etch
Deposit barrier and liner (typically Ta/TaN) to prevent copper diffusion into the dielectric
Fill with copper via electroplating
CMP to remove overburden and planarize before the next layer
Repeat 10–15 times. Each layer has to land perfectly flat or the next layer’s lithography fails.
Why Copper Damascene Replaced Aluminum
The shift from aluminum interconnect to copper dual-damascene was one of the bigger transitions in fab history.
Copper conducts better and resists electromigration, but you can’t etch it easily.
The Damascene Workaround:
Form patterns in the dielectric first (trenches and via holes)
Line with barrier and seed layers
Fill with electroplated copper
Planarize with CMP
Vias and lines get formed in a single integrated sequence – hence “dual” damascene.
How The Metal Stack Is Organized
Not all metal layers do the same job.
The stack is structured by function:
Lower layers: Fine pitch, dense local routing between transistors.
Middle layers: Intermediate connections between functional blocks.
Upper layers: Thicker metal for power distribution and global signals.
Top passivation: Nitride/oxide stack protecting the finished interconnect from moisture and mechanical damage.
Bond pad openings get etched into the passivation where the die will later connect to the package.
Step 7: Wafer Test, Dicing & Packaging
Once the wafer is complete, the semiconductor chip manufacturing process moves into the back-end assembly and test flow.
Wafer probing (EDS): Probe cards contact each die’s pads to run electrical tests. Dies get binned good, marginal, or bad, so only good ones move forward.
Backgrinding and dicing: Wafers get thinned from the backside, then sawed or laser-scribed into individual dies along scribe lines.
Die attach: Each die bonds to a package substrate or leadframe via adhesive, solder, or eutectic bonding.
Interconnection: Wire bonding (gold, copper, or aluminum wires) for standard packages; flip-chip with solder bumps or copper pillars for high-performance parts; through-silicon vias (TSVs) for 3D stacking like HBM.
Encapsulation: Mold compounds or ceramic/metal lids protect the die.
Final test and burn-in: Functional tests at speed across temperature, plus elevated stress to screen out latent defects.
Marking, sorting, shipping: Devices get binned by performance and shipped.
Quality Control Across The Semiconductor Manufacturing Process
Quality control runs in parallel with the semiconductor process at every stage (not just at the end).
Hundreds of inline inspection and metrology steps catch defects before they propagate.
In-Line Inspection & Metrology
Optical and e-beam inspection tools scan wafers after critical steps (litho, etch, CMP, deposition) to flag particles, pattern defects, and scratches.
CD-SEM and scatterometry measure feature sizes and overlay alignment.
Ellipsometry tracks film thickness across the wafer.
Automated Optical Inspection: Template Matching vs. AI AOI
Two approaches dominate:
Template matching: Fast and well-established, but brittle. Compares each image to a reference template. Process variation (lighting shifts, slight pattern variation, background noise) triggers false positives at high rates. Operator review queues fill up with non-issues.
AI-based AOI: Uses deep learning to classify defects against learned patterns rather than fixed templates. Handles process variation gracefully, surfaces subtle defects template matching misses, and reduces false positive rates significantly.
Most leading-edge fabs are shifting from pure template matching to AI-based AOI for exactly this reason – the inspection queue at 5nm is unworkable with template matching alone.
Statistical Process Control (SPC)
Control charts monitor:
CD
film thickness
etch rate
CMP removal rate
and dozens of other parameters
Upper and lower control limits get derived statistically. When trends or out-of-control points show up, engineers intervene before product goes out of spec.
Final Test & Burn-In
After packaging, functional tests verify the chip works across temperature, voltage, and timing. Burn-in stresses devices at elevated temperature and voltage to precipitate latent defects that would otherwise fail in the field.
What If Every Wafer Hit Yield Targets?
AI visual inspection plugs into your existing fab tools.
Semiconductor Manufacturing Process FAQs
How long does the semiconductor manufacturing process take?
The semiconductor manufacturing process takes anywhere from 6 weeks to 4 months from start to finish, depending on the chip’s complexity and the number of mask layers required. Leading-edge logic chips at 3nm or 5nm typically run closer to 12–16 weeks, while simpler memory or analog parts can complete in 6–8 weeks.
How many steps are in the semiconductor fabrication process?
The semiconductor fabrication process involves anywhere from 400 to over 1,500 individual process steps, depending on the chip’s complexity and node. Leading-edge logic chips run the highest step counts because each metal layer and patterning step adds to the cumulative total – and modern processes can require 80+ photolithography steps alone.
What is the difference between a foundry and an IDM in the semiconductor process?
The difference between a foundry and an IDM (Integrated Device Manufacturer) is who designs the chips that get manufactured. Foundries like TSMC fabricate chips designed by other companies. IDMs like Intel and Samsung design and manufacture their own chips. Samsung runs a hybrid model, fabricating both its own designs and third-party chips through Samsung Foundry.
How much does a semiconductor fab cost to build?
A modern semiconductor fab costs anywhere from $10 billion to $20+ billion to build, with leading-edge logic fabs at 3nm or 2nm reaching the higher end. The bulk of that capex goes to equipment – a single EUV lithography tool alone runs $150–$200 million, and a leading-edge fab needs multiple.
Conclusion
Every chip that ships is the output of a chain reaction.
The semiconductor manufacturing process starts with sand and ends with packaged silicon, with hundreds of steps and dozens of inspection points stacked in between.
FEOL builds the transistors. BEOL wires them through 10+ metal layers. Test and packaging finish the job. Photolithography, etching, deposition, and doping cycle through both halves of the fab dozens of times. And quality control runs in parallel because a defect caught early is recoverable, while one caught at final test means a scrapped wafer.
