What Is Automated Optical Inspection? Guide & Applications
Averroes
Aug 27, 2024
Microscopic defects, macro consequences. In high-stakes manufacturing, a single flaw can cost millions.
Automated Optical Inspection is transforming this reality, offering precision beyond human capabilities.
AOI systems detect invisible defects at unprecedented speeds, redefining quality control standards across industries. From electronics to aerospace, this technology is becoming indispensable for manufacturers aiming for zero-defect production.
But what makes a truly effective AOI system? We’ll explore the core components, cutting-edge applications, and how AI is elevating AOI to new heights of accuracy and adaptability.
Key Notes
AOI combines high-resolution cameras and AI to detect microscopic defects at high speeds.
AOI revolutionizes manufacturing quality control with superhuman precision
AI integration tackles false positives, adapts to new defects on-the-fly. Whilst Traditional AOI systems face significant challenges.
Applications span electronics, automotive, medical devices, and aerospace
97%+ accuracy achievable, but lighting and programming challenges persist
What is Automated Optical Inspection (AOI)?

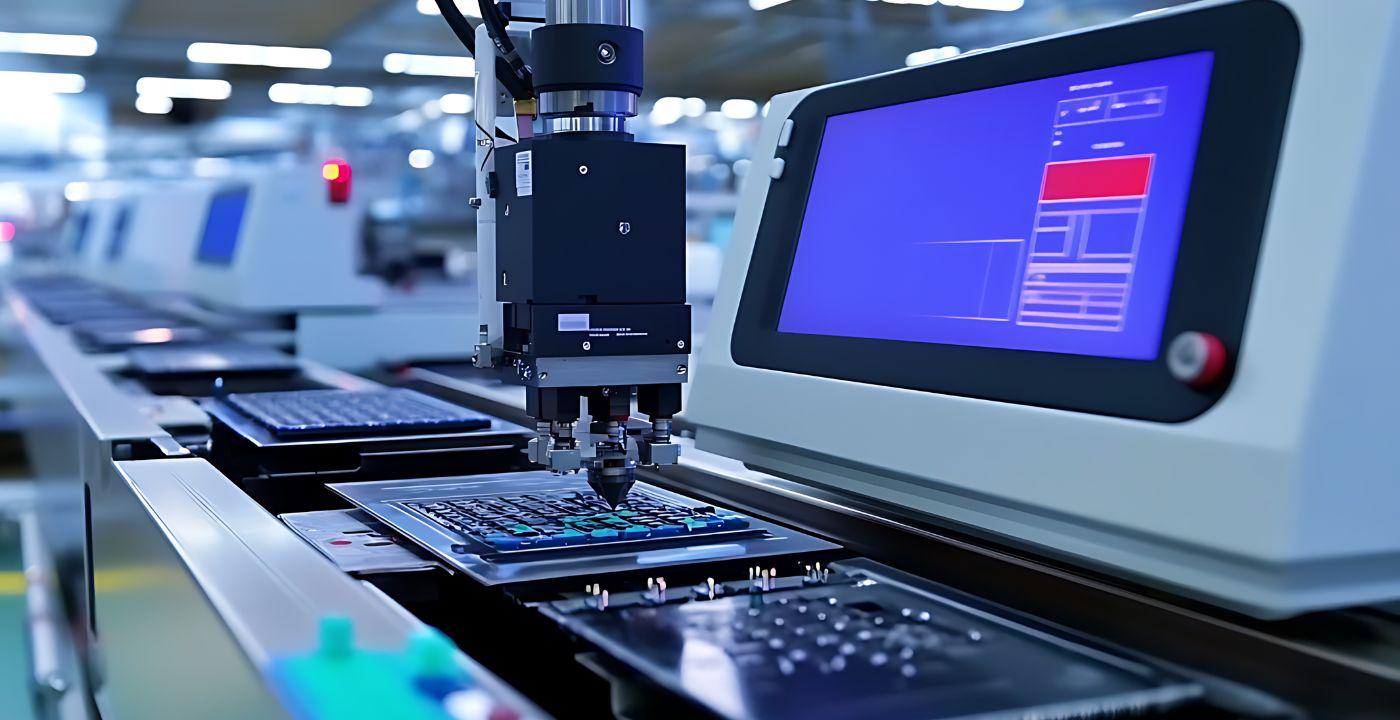

Automated Optical Inspection, or AOI, is a sophisticated, non-contact inspection method that uses high-resolution cameras and advanced imaging software to detect defects in manufactured parts.
It’s an advanced quality control system that combines precision optics with intelligent software to identify imperfections at speeds and accuracies far beyond human capabilities.
While AOI finds applications across various sectors, it’s particularly prevalent in the production of printed circuit boards (PCBs) and other electronic components, where precision is not just desired – it’s essential.
How Does AOI Work?
The AOI process is a marvel of modern engineering, combining cutting-edge optics with sophisticated software algorithms.
Here’s a breakdown of the key steps:
1. Setup and Programming
Before inspection begins, the AOI system is meticulously configured with specific inspection criteria. This often involves using “golden samples” – perfect specimens of the product – or CAD data as a reference point.
The system learns what “good” looks like so it can spot anything that deviates from this ideal.
2. Image Capture
As components pass under high-definition cameras or laser scanners, detailed images are captured from various angles. Different lighting techniques are employed to enhance visibility and bring out subtle features that might indicate a defect.
3. Image Analysis
This is where the real magic happens.
The captured images are analyzed using complex software algorithms that compare them against predefined standards. This analysis can involve statistical evaluations and even machine learning techniques to identify discrepancies.
4. Defect Detection
When the system identifies a defect, it logs this information for further action.
Depending on the capabilities of the specific AOI system used, defects may also be categorized based on predefined criteria.
This can lead to various outcomes, such as rejecting the defective item or marking it for manual inspection.
5. Feedback and Optimization
One of the most powerful aspects of AOI is its ability to provide feedback that can optimize the entire manufacturing process. By identifying trends in defect occurrences, manufacturers can make proactive adjustments, nipping potential issues in the bud.
While template matching – comparing images against predefined templates – is a cornerstone of AOI, it’s just one tool in a sophisticated toolkit.

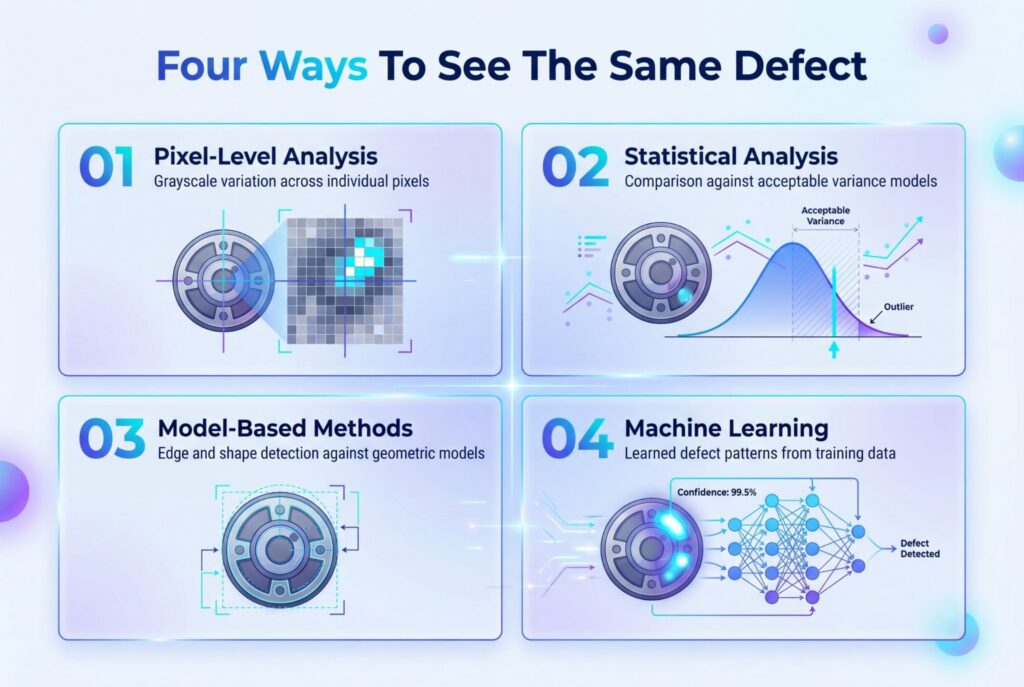

Modern AOI systems employ a variety of techniques to ensure comprehensive defect detection:
Pixel Analysis: By comparing the grayscale values of individual pixels, AOI systems can detect subtle variations that might indicate a defect.
Statistical Analysis: This method identifies anomalies by comparing inspected items against known characteristics or statistical models of acceptable variations.
Model-Based Methods: These techniques analyze the shapes and edges of components, allowing for the detection of structural deviations from expected models.
Machine/Deep Learning: Cutting-edge AOI systems harness the power of machine learning and deep learning algorithms. These systems can adapt and recognize new defect types over time, growing smarter with each inspection.

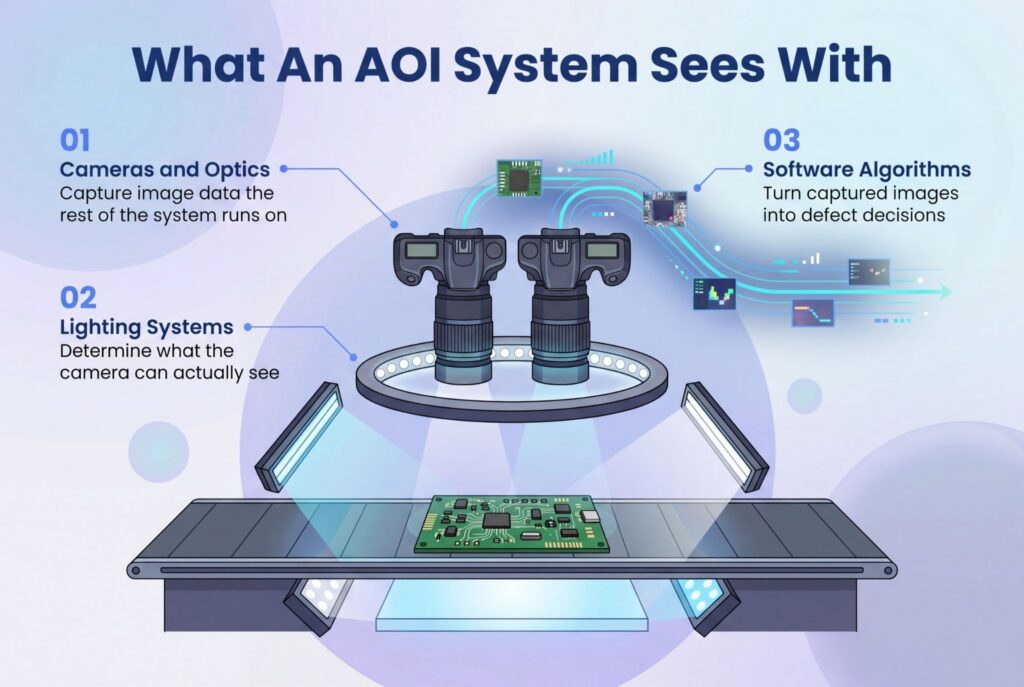

To truly appreciate the power of AOI, it’s essential to understand the key components that make these systems tick.
Let’s break down the core elements:
Cameras and Optics
At the heart of any AOI system are its cameras – the digital eyes that capture the crucial images for analysis. But not all cameras are created equal:
2D Cameras: These workhorses of the AOI world capture flat images, perfect for detecting surface-level defects like misalignments or missing components. They’re the go-to choice for many PCB inspections.
3D Cameras: Taking things up a notch, 3D cameras capture depth information, allowing for the detection of three-dimensional defects. This is particularly useful for spotting issues like component height variations or coplanarity problems.
The choice between 2D and 3D often depends on the specific inspection needs and the complexity of the product being examined. Many advanced AOI systems incorporate both types for comprehensive coverage.
Lighting Systems
If cameras are the eyes of AOI, then lighting systems are the flashlights that illuminate the dark corners where defects like to hide. Proper lighting is crucial for enhancing image quality and ensuring that even the subtlest defects are visible.
Different lighting techniques serve various purposes:
LED Arrays: These are the workhorses of AOI lighting, providing uniform illumination that enhances image clarity. Their energy efficiency and long lifespan make them a popular choice.
Halogen Lamps: While less common, these can be useful for their brightness and wide spectrum, which can help in detecting specific types of defects.
Backlighting and Side Lighting: By manipulating the angle of light, AOI systems can create shadows or highlights that reveal defects not visible under direct lighting.
The art of AOI lighting is in combining these techniques to create the optimal conditions for defect detection. It’s not uncommon for AOI systems to use multiple lighting setups, switching between them as needed for different inspection tasks.
Software Algorithms
While cameras and lighting capture the visual data, it’s the software algorithms that make sense of it all. This is where the real intelligence of AOI systems shines:
Pattern Recognition: At its core, AOI software compares captured images against predefined templates or models. This process involves rapid, precise analysis of intricate details to identify any deviations from the expected patterns.
Machine Learning and AI: Advanced AOI systems are pushing the boundaries with machine learning algorithms. These systems can learn from new data, allowing them to recognize previously unclassified defects and adapt to changing inspection requirements.
Image Processing Techniques: Before analysis even begins, AOI software often employs sophisticated image processing techniques to enhance the quality of captured images. This might involve noise reduction, contrast enhancement, or edge detection – all aimed at making potential defects more visible.
Decision-Making Algorithms: Once defects are detected, the software must decide how to categorize them and what action to take. This involves complex decision trees and often incorporates statistical analysis to minimize false positives and negatives.
The sophistication of these algorithms is what sets modern AOI systems apart. They’re not just looking for predefined defects – they’re intelligently analyzing each component, learning from each inspection, and continually refining their detection capabilities.
Applications of AOI
While AOI’s roots are firmly planted in the world of electronics manufacturing, its branches have spread far and wide.
Let’s explore some of the diverse applications where AOI is making a significant impact:
Electronics and PCB Manufacturing
This is where AOI demonstrates its core strengths. In the production of Printed Circuit Boards (PCBs) and electronic components, AOI systems are indispensable.
But it doesn’t stop at PCBs. AOI is also crucial in semiconductor wafer inspection, ensuring the quality and reliability of integrated circuits at the microscopic level.
Automotive Industry
In the automotive sector, AOI plays a critical role in ensuring the safety and reliability of vehicles:
Inspection of mechanical parts, including headlights, taillights, and dashboard components
Quality control of printed electronics in modern vehicle systems
Tire manufacturing inspection, detecting defects like uneven tread wear, bulges, or punctures
Medical Device Manufacturing
In an industry where errors can have life-threatening consequences, AOI provides an extra layer of assurance:
Inspection of critical medical devices for defects and proper assembly
Verification of pharmaceutical packaging, ensuring correct labeling and absence of contamination
Quality control of surgical instruments and implants
Aerospace and Defense
Where failure is not an option, AOI steps up to the plate:
Inspection of critical aircraft components
Quality assurance of satellite and spacecraft parts
Verification of military-grade electronics and equipment
Food and Beverage Packaging
AOI systems ensure that what’s on the outside is as good as what’s inside:
Detection of packaging defects, such as improper seals or contamination
Verification of correct labeling and expiration dates
Verification of proper cell alignment and connection
Quality control of the lamination process
Textile Industry
Even in traditional industries, AOI is making its mark:
Detection of weaving or knitting defects in fabrics
Inspection of textile printing for color accuracy and pattern alignment
Identification of material flaws like holes or inconsistencies
Benefits and Challenges of AOI Implementation
While traditional AOI systems have revolutionized manufacturing quality control, they come with their own set of advantages and limitations.
The following table outlines the key benefits and challenges associated with implementing conventional AOI systems before the integration of advanced AI enhancements
Benefits
Challenges
Enhanced Accuracy: Detects minute flaws invisible to the human eye
Dependence on Predefined Parameters: May struggle with new or unexpected defects
Complex Setup and Programming: Requires specialized knowledge and ongoing training
Cost Reduction: Long-term savings in labor and rework
Adaptability Issues: Difficulty in quickly adjusting to new products or processes
Consistency and Reliability: 24/7 operation without fatigue
Lighting and Imaging Challenges: Sensitive to environmental variations
Data Collection and Analysis: Enables proactive process optimization
False Positives and Negatives: Requires fine-tuning of detection sensitivity
Flexibility in Inspection: Adaptable to evolving product designs
Cost of Implementation: Significant upfront investment required
Improved Yield Rates: Early defect detection increases profitability
Integration Capabilities: Works with other inspection methods
Regulatory Compliance: Helps meet industry standards
Enhancing AOI with AI
While traditional AOI systems have revolutionized quality control in manufacturing, the increasing complexity of modern products demands even more advanced solutions. This is where we at Averroes.ai step in, pushing the boundaries of what’s possible in automated inspection.
Our approach enhances AOI systems by integrating cutting-edge AI and deep learning algorithms.
We offer several key advantages:
Improved Accuracy: By leveraging our advanced AI models, we significantly reduce false positives and negatives, achieving accuracy rates of up to 97%+.
Adaptability: Unlike traditional AOI systems that struggle with environmental changes, our solution maintains high accuracy despite variations in lighting or product positioning.
Continuous Learning: Through active learning and human feedback, our system continuously improves its performance over time, approaching near-perfect accuracy.
Anomaly Detection: Our advanced AI models can identify previously unseen defect types, a crucial capability in rapidly evolving manufacturing environments.
Seamless Integration: Our software layer works with existing hardware, allowing manufacturers to enhance their inspection processes without costly equipment upgrades.
By addressing the limitations of traditional AOI systems, we are helping manufacturers meet the quality control challenges of today’s complex production environments, paving the way for the future of automated inspection.
How does AOI compare to manual inspection in terms of cost-effectiveness?
While AOI systems require a significant upfront investment, they typically become more cost-effective than manual inspection in the long run, especially for high-volume production.
AOI offers faster inspection speeds, greater accuracy, and consistency, reducing labor costs and the expenses associated with defective products reaching customers. The break-even point depends on factors like production volume, product complexity, and the cost of potential defects.
Can AOI systems be used for inspecting flexible or non-flat surfaces?
Yes, modern AOI systems can inspect flexible and non-flat surfaces, though it presents additional challenges.
Advanced 3D AOI systems use multiple cameras and sophisticated software algorithms to create accurate models of curved or flexible surfaces. Some systems employ laser profiling or confocal imaging techniques to capture the topography of non-flat items.
However, these inspections often require more complex setup and may have limitations depending on the degree of surface irregularity.
How often do AOI systems need to be recalibrated or updated?
The frequency of recalibration or updates for AOI systems can vary depending on several factors:
Product Changes: Whenever a new product is introduced or significant design changes are made to existing products, the AOI system typically needs to be reprogrammed or at least have its parameters adjusted.
Environmental Factors: Changes in lighting conditions, temperature fluctuations, or other environmental variables may necessitate recalibration to maintain inspection accuracy.
Performance Drift: Over time, components of the AOI system (like cameras or lighting) may experience slight degradation, requiring periodic recalibration to maintain optimal performance.
Software Updates: As manufacturers release software updates that improve algorithms or add new features, systems may need to be updated and recalibrated to take advantage of these improvements.
In practice, many manufacturers perform minor calibration checks daily or weekly, with more comprehensive recalibrations done monthly or quarterly.
However, the exact schedule should be determined based on the specific needs of the production environment and the recommendations of the AOI system manufacturer.
Conclusion
Automated Optical Inspection has proven itself a game-changer in manufacturing quality control. As we’ve seen, AOI systems offer unparalleled precision in detecting microscopic defects across industries, from PCB production to aerospace components.
However, the real power of AOI lies not just in its current capabilities but in its potential for growth. The integration of AI and deep learning is addressing traditional AOI limitations, offering enhanced adaptability, reduced false positives, and the ability to recognize new defect types on the fly.
At Averroes.ai, we’re harnessing this potential to create AOI systems that evolve with your production needs. Our AI-enhanced solution doesn’t just inspect—it learns, adapts, and continuously improves.
