KLA Tools Guide [Reticle Inspection to Fab-Wide Process Control]

KLA tools are the inspection, metrology, and process-control systems most advanced fabs run to find defects and measure process parameters, from reticle inspection before lithography to yield analytics across the whole line. The portfolio spans five categories: reticle inspection, wafer inspection, e-beam review and inspection, metrology, and software, plus PCB and substrate AOI under the Orbotech brand.

There’s no shortage of KLA tools out there but figuring out what each one does (and why it matters) isn’t always straightforward.

Between wafer inspection, e-beam review, metrology, and full-stack control, it’s easy to lose track.

We’ll break down the core systems. How they work, where they’re used, how KLA’s inspection modalities compare, and what role each plays across inspection and process control in the fab.

This guide is part of our semiconductor manufacturing hub.

Key Notes

• There are 5 core categories of KLA tools: reticle inspection, patterned and unpatterned wafer inspection, e-beam review and inspection, metrology, and software.
• Teron Series prevents costly yield loss by catching EUV reticle defects.
• CIRCL cluster systems inspect wafer front, back, and edge simultaneously.
• E-beam tools (eDR7xxx, eS800) detect electrical defects that optical systems miss.

What Are KLA Tools?

KLA tools refer to a wide portfolio of inspection, review, metrology, and process control systems used throughout semiconductor manufacturing.

These tools aren’t one-size-fits-all. They range from reticle inspection systems that scan photomasks for killer defects, to electron-beam review platforms that image nanometer-scale anomalies, to cluster tools that scan the entire wafer surface – front, back, and edge.

For cross-vendor comparisons, see our guide to wafer inspection tools compared.

About KLA (Formerly KLA-Tencor)

KLA Corporation was formed in April 1997 as KLA-Tencor through the merger of KLA Instruments (operating since 1975) and Tencor Instruments (1976), took its current name in July 2019, and acquired Orbotech in February 2019 for about $3.26 billion. KLA Instruments today is a separate division within the company for benchtop and fab instruments – Alpha-Step, Tencor, and HRP stylus profilers, Filmetrics optical metrology, Candela surface inspectors, and nanoindentation – not a name for the portfolio below.

KLA Reticle Inspection Tools (Teron Series)

Photomasks are foundational. If the mask is flawed, every die printed with it could carry the same defect.

KLA’s Teron Series is built for precisely this reason.

Photomasks are foundational. If the mask is flawed, every die printed with it could carry the same defect. KLA’s Teron Series is built for precisely this reason: it detects particles, pattern anomalies, and placement errors on both EUV and optical reticles.

• Teron 640e: Gold standard for 7nm and 5nm EUV/193nm reticle inspection
• Teron SL670e/XP: High-throughput models designed for volume EUV mask manufacturing
• Teron SL650 & 611: Fab-based reticle QC systems for incoming inspection and degradation monitoring

Key features include STARlight technology for die-to-die and die-to-database inspections, EUVGold algorithms for multilayer masks, and connectivity to KLA’s e-beam review platforms. For how reticle inspection fits the fab workflow, see our reticle inspection guide; for how masks are made and qualified, our photomask inspection guide.

Patterned Wafer Inspection Tools: Puma & 2900 Series

After reticles, wafers go through layer after layer of complex processing. That’s where patterned wafer inspection comes in.

Puma Series (Puma 9650, 9980)

Puma tools use narrowband laser scanning to identify particles, bridges, residues, and pattern anomalies in critical areas like SRAM edges and memory transition zones.

The Puma 9980 integrates design-aware capabilities and pairs seamlessly with e-beam systems for deeper analysis.

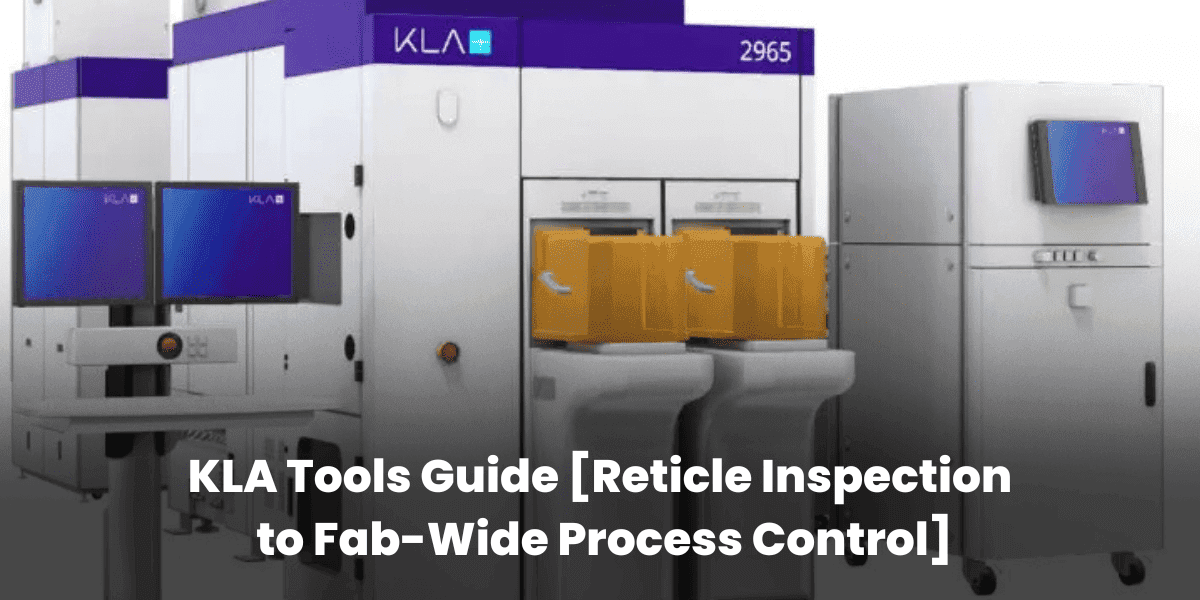

2900 and 39xx Series (Broadband Plasma)

The 2900 Series uses broadband illumination to inspect early process and backend layers, delivering ADI sensitivity on par with AEI and using machine-learning algorithms like MCAT iDO 3.0 for smarter classification. Systems like the 2810, 2815, and 392x use tunable broadband illumination from DUV through visible, so the inspection wavelength adapts to the wafer material and layer type. It’s especially useful for new logic devices and advanced memory architectures.

Together, these tools enable fabs to catch defects early, fine-tune processes, and reduce manual reinspection. How bright-field compares with e-beam is covered in the next section.

Unpatterned Wafer Inspection: Surfscan Series

You can’t build anything reliable on a flawed substrate. The Surfscan Series handles unpatterned wafer inspection – identifying scratches, sliplines, residues, and particles on bare wafers or films.

The SP7XP delivers 12.5nm sensitivity, uses multiple illumination modes (normal and phase contrast), and integrates AI classification via IBC and the Z7 engine. The SP7 line’s high sensitivity and fast scan speeds suit high-volume environments where every second counts, and the SP8 extends the series for the latest nodes. Surfscan is critical for incoming quality control of silicon, SiC, and GaN wafers, and plays a key role across mature and sub-5nm nodes alike.

Substrate Surface Inspection: Candela

Candela is KLA’s surface-inspection line for wafers and substrates rather than patterned device layers: prime silicon, epitaxial, SOI, and compound semiconductor wafers such as SiC and GaN. Acquired by KLA in 2004 and now part of KLA Instruments, Candela systems like the Candela 8720 detect, count, and bin surface defects to qualify incoming substrates and monitor substrate fabrication processes, feeding the same data systems that catch yield-limiting excursions downstream.

Bright-Field vs E-Beam: How KLA’s Inspection Modalities Compare

KLA’s inspection systems split along one axis: optical bright-field for coverage and speed, e-beam for nanometer sensitivity. Bright-field systems detect defects down to roughly 20–30nm at full-wafer throughput; e-beam systems reach 1–3nm but scan far more slowly. Fabs layer them rather than choose, with AI classification in between.

Bright-Field: The Fab Workhorse

KLA’s bright-field systems use reflected light to detect defects. A broadband plasma light source shines directly on the wafer; defect-free areas reflect light evenly, while anomalies scatter or absorb light and show up as contrast changes.

• Great at: Full-wafer inspection at high throughput; surface defects such as particles, scratches, and pattern misalignment; inline monitoring, tool qualification, and R&D. Cost-effective for volume production.
• Limitations: Resolution limited by the physics of light (~20–30nm); can miss buried or electrical defects; less suited to sub-5nm and 3D structures.

E-Beam: Nanoscale Precision

E-beam inspection fires a focused electron beam at the wafer and measures secondary and backscattered electrons to generate high-resolution images. Systems like the eSL10 and eDR7380 detect defects down to 1–3nm.

• Built for detail: Simul-6 sensor technology collects six defect signals in one scan (surface, topography, deep trench, and more); Yellowstone scanning processes up to 10 billion pixels per scan; deep-learning classification analyzes defects in real time.
• Use cases: Hotspot and critical-layer inspection; advanced-node inspection (7nm, 5nm, 3nm); R&D and root-cause analysis; voltage contrast for buried electrical defects.
• Limitations: Slower throughput than optical; vacuum and cleanroom requirements; higher operational complexity and cost.

High-Speed Single-Beam, and Where Multi-Beam Fits

[REFRAMED: the 2025 page presented KLA’s single-beam approach under a “Multi-Beam” heading; KLA reported adoption of both single-beam and multi-beam e-beam systems in 2026. SME confirms current KLA multi-beam models before ship.]

Traditional multi-beam systems scan with arrays of electron beams in parallel to raise throughput, at the cost of calibration, beam-overlap, and cross-beam resolution challenges. KLA’s high-speed single-beam platforms take a different route to the same goal: one optimized beam with adjustable current (200 pA to 40 nA) and Yellowstone scanning that approaches multi-beam speed while keeping single-beam resolution, combined with Simul-6 and AI classification. KLA has also reported customer adoption of multi-beam e-beam systems alongside single-beam, so the practical question for a fab is throughput per inspected layer, not beam count. [SME verify]

Side-by-Side Comparison

When To Use What

Fabs typically layer the strategies: bright-field for broad coverage, AI to flag suspect wafers or layers, e-beam for the deep dive. Bright-field outputs defect maps and contrast images for trend monitoring and excursion alerts; e-beam outputs nanometer-scale morphology and voltage-contrast images for failure analysis.

Electron-Beam Review and Deep Inspection: eDR7xxx & eS800

When optical tools spot something suspicious, e-beam review fills in the details.

eDR7xxx Series (eDR7380)

These are high-resolution defect review systems that use Simul-6 technology to capture multiple signal types in a single scan.

That means faster excursion detection, better root cause analysis, and tighter feedback loops.

eS800 Series

The eS800 takes it a step further: not just review, but inspection.

With TurboScan and voltage contrast imaging, it can detect electrical defects like opens and shorts, and identify physical defects inside deep trenches and vias.

These capabilities are essential for advanced memory (DRAM, 3D NAND) and logic devices.

Fab-Wide Inspection and Control: CIRCL™ Series

CIRCL is the centerpiece of KLA’s fab-wide control approach. It’s a modular cluster system that inspects the front, back, and edge of the wafer simultaneously.

It combines defect inspection, metrology, and review within one footprint.

Features like DirectedSampling™ trigger smart, cross-module measurements. When a defect is found on the front side, edge profile or backside inspection can be triggered automatically – saving time and improving traceability.

CIRCL-AP adds support for advanced packaging lines.

Compared to niche inspection tools, CIRCL is built for scale: high throughput, parallel operation, and broad coverage.

Metrology Tools Supporting Process Control

Inspection tools are just half the story.

KLA’s metrology systems measure film thickness, CD, overlay error, edge bead, and more.

• SpectraFilm / SpectraShape: Film and shape metrology
• Axion: X-ray CD and profile measurement
• SensArray: In-situ temperature and tool-environment monitoring
• Surfscan: Also supports process monitoring for incoming wafers

These metrology systems provide the data that fabs need to optimize etch, deposition, and litho steps at scale.

The Software Backbone: Yield Platforms & Data Analytics

All that inspection and metrology data feeds into KLA’s yield and analytics platforms:

• Klarity®: Centralizes defect and yield data across the fab
• OVALiS / 5D Analyzer: Real-time diagnostics, excursion detection, and SPC
• RDC (Reticle Decision Center): Litho analysis and reticle-related defect disposition

AI and machine learning play a central role here – from classifying defect images to identifying spatial signatures and predicting excursions before they cause downtime.

Beyond The Fab: Orbotech AOI And Advanced Packaging

KLA’s inspection footprint extends past the wafer fab. Through its 2019 acquisition of Orbotech, KLA sells automated optical inspection for PCBs and IC substrates under the Orbotech brand: Ultra Dimension (a 4-in-1 AOI system with pattern inspection down to 5µm line and space), Ultra Fusion (IC substrate AOI down to 10µm), Fusion (HDI and flex PCB), and Discovery II (volume PCB AOI). For what AOI systems in this class cost, see our AOI machine prices [link: /blog/automated-optical-inspection-price] guide.

For advanced packaging, KLA fields the Kronos 1190 wafer-level packaging inspection system and the ICOS F160XP and ICOS T3/T7 series, launched together in 2020: the F160XP sorts and inspects dies after wafer-level packages are tested and diced, combining optical and infrared side inspection to catch hairline dicing cracks; the T3 (tray output) and T7 (tape output) inspect finished components with 3D metrology and AI-based binning. CIRCL-AP covers cluster inspection on packaging lines.

Why KLA Remains Core to Advanced Semiconductor Manufacturing

KLA doesn’t just offer tools. It offers infrastructure. Its systems span the entire semiconductor lifecycle:

• R&D: Early process feedback and design yield optimization
• Ramp: Accelerated yield learning and debug
• High-Volume Manufacturing: Scalable, fab-wide quality control

And with tools deeply embedded in process flows and MES systems, switching is no small feat, making KLA not only essential but sticky. KLA itself puts tool lifetimes at more than 20 years, with lifetime service revenue now exceeding 100% of a tool’s average selling price, which is the clearest measure of how long these systems stay in production once installed.

AI On Your KLA Tools: What The Software Layer Adds

Most KLA inspection recipes still rely on template matching, which works for known defect types and struggles with novel ones. A third-party AI layer is the option that changes the output without changing the hardware. Averroes runs on the images KLA tools already produce (Puma, 2900, Surfscan, and eDR output), trains a classification model on 20–40 images per defect class, and reaches 99%+ classification accuracy with near-zero false positives, deployed on-premises or in the cloud with no equipment changes. In production at Tekscend Photomask, the same approach reached 99.993% accuracy across 1.4 million images with defect review running 8x faster.

What that means on a KLA line:

• Novel defects get flagged. Unsupervised anomaly detection surfaces signatures no template was written for.
• False positives drop to near zero, cutting the engineer-review load that follows every inspection run.
• Models go live in hours, not the weeks a new recipe typically takes.
• The hardware stays. The AI layer reads KLA’s output; it does not replace the tool.

Frequently Asked Questions

How do KLA tools integrate with existing fab MES systems?

KLA tools use standard interfaces like SECS/GEM to integrate with manufacturing execution systems. This allows real-time data exchange, automated workflows, and tight feedback loops across inspection, metrology, and production tools.

Can KLA inspection tools detect new, unknown defect types?

Yes. Many tools, like the Puma Series and CIRCL, incorporate AI/ML algorithms that go beyond template matching, enabling detection of previously unseen or novel defects without manual reprogramming.

What’s the difference between defect inspection and metrology?

Defect inspection identifies anomalies (like particles or pattern defects), while metrology measures process parameters like CD, overlay, or film thickness. Both are critical for process control but serve different objectives; our semiconductor inspection and metrology guide covers the split in depth.

How scalable are KLA tools for multi-fab operations?

KLA’s platforms are designed with fleet consistency, centralized recipe management, and cloud-based analytics in mind, making them well-suited for deployment across multiple fabs with minimal duplication of effort.

Can KLA systems inspect both front-end and back-end process layers?

Yes. KLA’s platforms are designed to inspect front-side, back-side, and edge defects across all process stages, from initial patterning to final packaging layers, making them suitable for full-flow process monitoring.

Are KLA’s inspection tools compatible with heterogeneous integration or chiplet-based designs?

Yes, and increasingly so. Tools like the eSL10 can analyze complex 3D interconnects, high-aspect-ratio trenches, and multi-die stacks, while CIRCL-AP, the Kronos 1190, and the ICOS series cover advanced packaging and heterogeneous-integration lines.

Conclusion

KLA tools play a major role in how leading fabs detect, review, and manage defects – from early-stage reticle issues to full-surface wafer inspection, and now from substrate qualification through PCB and packaging inspection.

Systems like the 2900 Series, Puma, Surfscan, Candela, CIRCL, and the e-beam platforms each serve a specific purpose, but they share a common goal: keep quality high and yield moving in the right direction. Bright-field gets you coverage and speed, e-beam gets you detail, and the software stack ties the data together.

Tying those systems together and making their output actionable is where the real challenge starts.
