Guide To Data Augmentation For Image Classification

Manufacturing quality control demands precision–but precision requires data.

When defect examples run scarce and inspection accuracy falls short, you need solutions that work with what you have.

We’ve turned 63% accuracy rates into 97% without collecting a single new image. And we’ll break down exactly how.

For manufacturing engineers and quality control teams seeking real solutions to data scarcity, here’s your step-by-step technical guide to making every image count.

No theory–just proven methods that deliver results in production environments.

Key Notes

Advanced augmentation techniques boost detection accuracy up to 97% while minimizing false positives.

Implementation requires minimal hardware changes, focusing instead on optimizing existing inspection systems.

Smart augmentation strategies reduce project timelines by 78% compared to traditional quality control methods.

What Is Data Augmentation?

Data augmentation serves as a method to increase training dataset size and diversity by applying systematic modifications to existing data samples.

For image classification tasks, these modifications create variations of original images while preserving their essential characteristics and labels.

The technique operates by generating new training examples through controlled alterations, helping machine learning models learn invariant features and improve generalization capabilities.

Rather than collecting additional real-world data—which can be expensive and time-consuming—data augmentation creates synthetic variations that reflect real-world conditions the model might encounter.

Consider a manufacturing quality control system: A model trained to detect defects must recognize flaws regardless of lighting conditions or part orientation. Data augmentation creates examples showing defects under various conditions, teaching the model to identify issues across different scenarios.

This approach has proven highly effective, with implementations showing dramatic improvements in inspection accuracy from 63% to 97% after implementing smart augmentation techniques.

Deep Learning and Data Augmentation

Data augmentation is particularly impactful when used with deep learning models, especially convolutional neural networks (CNNs) commonly used in image classification.

The complex architectures of these models, with their many layers and numerous parameters, make them highly susceptible to overfitting, especially when training data is limited.

Data augmentation mitigates this risk by:

Increasing Data Variety: Providing a richer variety of inputs, helping the CNN learn more generalizable features.
Improving Generalization: Enhancing the model’s ability to accurately classify unseen images.
Enhanced Robustness: Making the model more resilient to real-world image variations.

The application of augmentations is highly optimized in deep learning pipelines:

During preprocessing: Creating augmented versions of the training dataset.
Real-time during training: Many frameworks offer built-in capabilities for on-the-fly augmentation.
At inference time: Test-time augmentation improves prediction accuracy.

Implementation Mechanics

Data augmentation functions through three primary mechanisms:

Label-Preserving Transformations: Modifications altering image appearance without changing semantic meaning.
Feature Space Alterations: Changes to the underlying data representation, crucial for deep learning architectures.
Synthetic Sample Generation: Creating new examples using advanced techniques, including Generative Adversarial Networks (GANs). GANs are particularly useful for supplementing limited datasets.

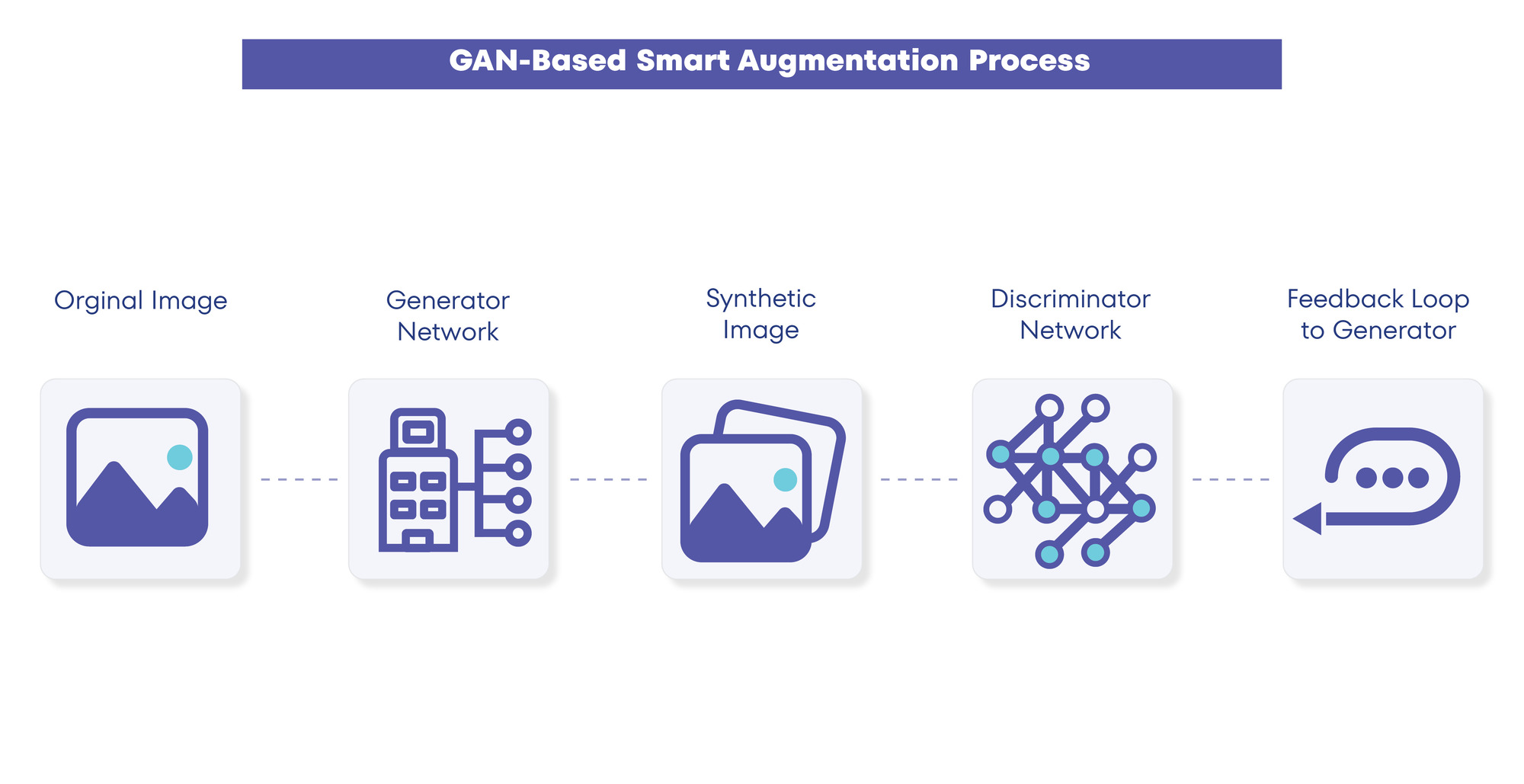

How GANs Enhance Deep Learning within Smart Augmentation

Smart Augmentation tools leverage Generative Adversarial Networks (GANs), generating entirely new synthetic training images. These GANs work by using two neural networks:

Generator: Creates synthetic images mimicking real images.
Discriminator: Distinguishes between real and synthetic images, driving iterative improvement in the generator’s output.

This process results in increasingly realistic synthetic images. These significantly boost training dataset size and diversity, improving model accuracy and reducing overfitting.

This is especially beneficial for:

Rare Defects: Generating synthetic examples of infrequently occurring defects.
Limited Datasets: Supplementing scarce or expensive-to-obtain real-world data.

By incorporating GAN-generated images, deep learning models become more robust and capable of generalizing to new, unseen data.

Impact on Model Performance

Data augmentation significantly influences model performance through multiple channels:

Improved Generalization

Reduces overfitting by exposing models to varied data representations, teaching invariance to common variations in input data, and strengthening feature learning across diverse conditions.

Enhanced Robustness

Models learn to handle real-world variations more effectively, increasing resilience to noise and distortions, and resulting in better performance on edge cases and unusual inputs.

Resource Optimization

Reduces data collection and labeling costs, minimizes storage requirements, and enables efficient use of computational resources during training.

Types of Data Augmentation Techniques

Data augmentation techniques are broadly categorized into data warping and oversampling methods.

Data warping techniques modify existing images while preserving their labels, whereas oversampling methods create entirely new synthetic data instances.

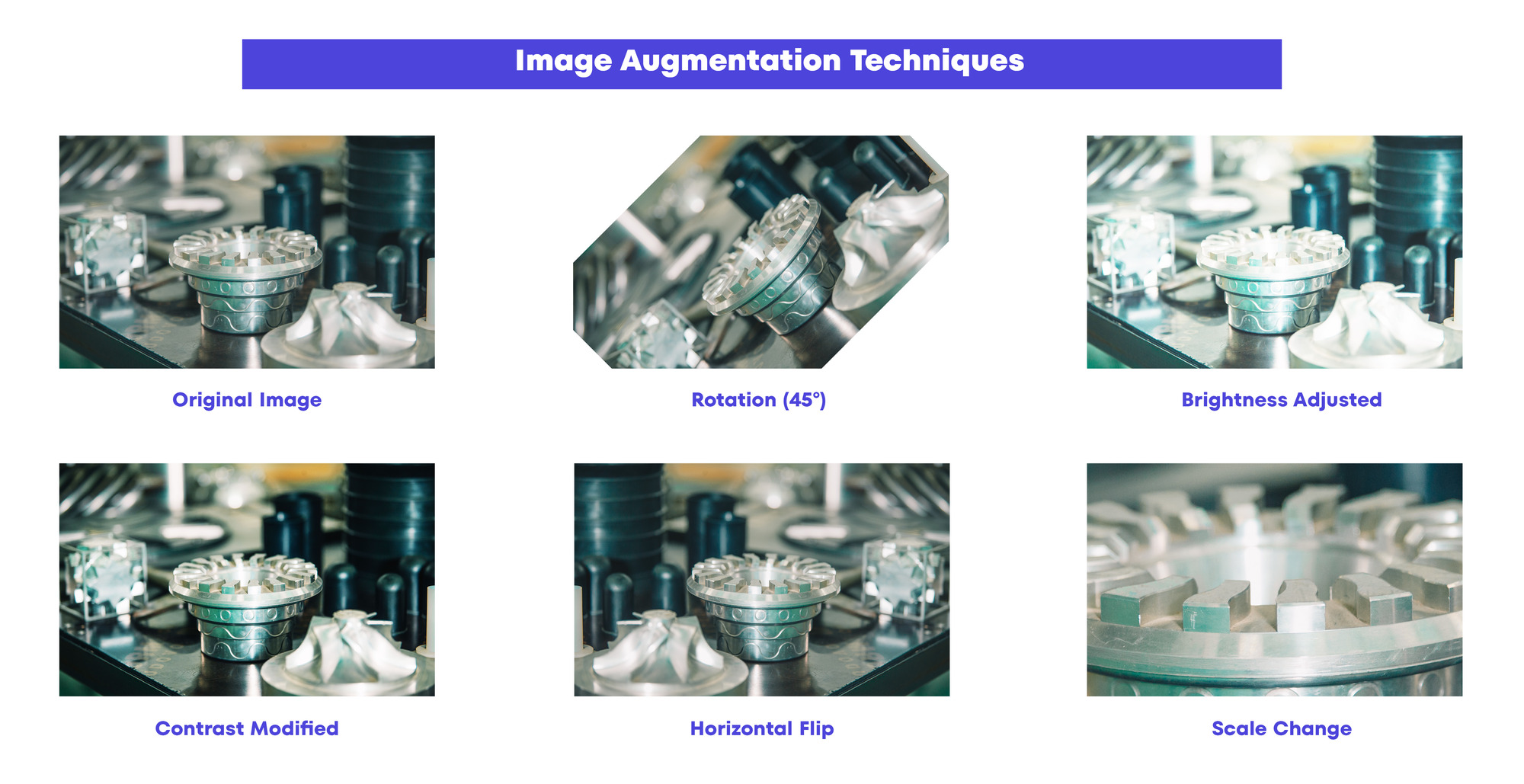

Geometric Transformations

Geometric transformations modify an image’s spatial properties without altering its content.

These transformations are particularly useful for training deep learning models to be less sensitive to variations in object position, orientation, and scale.

Common geometric transformations include:

Rotation

Applying angular rotations to images helps models learn orientation-invariant features. Rotation can range from 0° to 360°, with smaller ranges often employed to simulate realistic variations.

Scaling

Changing image size while preserving aspect ratio teaches scale invariance, enabling models to recognize objects regardless of their size within the image.

Flipping

Horizontal flips are commonly used for natural images, while vertical flips may be applied in specialized domains such as satellite imagery.

This technique effectively doubles the potential training examples while preserving the image’s semantic meaning.

Translation

Shifting images along the x and y axes enhances position invariance, proving particularly useful for object detection tasks.

Color Space Transformations

These transformations modify the color characteristics of an image, enhancing a model’s robustness to variations in lighting conditions and color representations.

Common color space transformations include:

Brightness Adjustment

Modifying overall image luminance simulates variations in lighting conditions, enhancing model robustness to different illumination levels.

Contrast Modification

Altering the difference between light and dark regions helps models learn features across various contrast levels, improving their ability to generalize across diverse imaging conditions.

Color Jittering

Introducing random variations in color channels (hue, saturation, and value) improves a model’s robustness to color variations commonly encountered in real-world images.

Grayscale Conversion

Removing color information forces the model to focus on structural features, proving particularly useful for shape-based classification tasks where color is not a primary distinguishing characteristic.

Turn Limited Data Into Detection Excellence

Boost accuracy without collecting new images

REQUEST FREE DEMO NOW

Implementing Data Augmentation: Tools and Techniques

Various software frameworks offer robust tools and techniques to streamline the data augmentation process. These tools provide a range of capabilities, from simple transformations to complex, highly optimized pipelines.

The choice of tool often depends on the specifics of your project and existing infrastructure.

Key capabilities to consider include:

Real-time Augmentation: The ability to generate augmented samples on-the-fly during training minimizes memory usage and improves efficiency.
High-Performance Implementations: Some tools are specifically designed for speed and efficiency, making them ideal for large-scale projects with extensive datasets.
Flexible Pipelines: Advanced frameworks allow for the easy combination of multiple augmentation techniques within a single, unified workflow. This flexibility is crucial for creating customized data augmentation pipelines to match specific needs.
Hardware Acceleration: Support for both CPU and GPU processing enhances efficiency, enabling faster processing times for large-scale datasets.

Best Practices for Data Augmentation

Selecting Transformations

The selection of appropriate augmentation techniques requires careful consideration of the specific use case and data characteristics.

Manufacturing applications, for instance, benefit from augmentations that simulate real-world inspection conditions—varying lighting, different part orientations, and potential occlusions.

When selecting transformations, consider:

Domain Relevance: Augmentations must reflect realistic variations the model might encounter during deployment.
Data Distribution: Analyze existing data to identify gaps where augmentation can provide additional valuable training examples, addressing class imbalances and variations within each class.

Parameter Configuration for Optimal Results

Effective parameter settings balance introducing useful variation and preserving the essential characteristics of your training data.

Key considerations include:

Range Limitations: Parameters should remain within boundaries that generate realistic results.
Transformation Probabilities: Not every technique needs to apply to every image. Adjusting probabilities ensures diverse but realistic training data.

Validation Strategies for Effective Augmentation

Robust validation ensures that augmentation techniques contribute positively to model performance.

This involves:

Baseline Comparisons: Establishing performance metrics without augmentation to measure improvement.
Cross-Validation: Testing augmentation effects across different data splits to confirm consistent benefits.

Common Pitfalls in Data Augmentation

Over-augmentation can degrade model performance. Common issues include:

Excessive Transformation Severity: Applying overly extreme modifications generates unrealistic training examples.
Excessive Transformation Combinations: Using too many simultaneous augmentations can create synthetic data that is too far removed from real-world examples.

Maintaining Data Quality During Augmentation

Maintaining high data quality throughout the augmentation process requires systematic monitoring:

Visual Inspection: Regularly review augmented samples to ensure transformations yield valid training examples.
Automated Verification: Implement programmatic checks for image integrity, label preservation, and transformation bounds.

Managing Computational Overhead

The computational overhead of data augmentation requires careful management:

Resource Utilization: Monitor system resource usage to optimize the augmentation pipeline.
Pipeline Optimization: Structure augmentation workflows to minimize bottlenecks and improve training efficiency.

The success of data augmentation hinges on this balance between introducing beneficial variation, preserving data quality, and efficiently managing computational resources.

Applications of Data Augmentation

Data augmentation significantly improves model performance and efficiency in various sectors.

Here are some notable examples:

Manufacturing Inspection

Manufacturing quality control systems demonstrate the tangible benefits of data augmentation in practical applications.

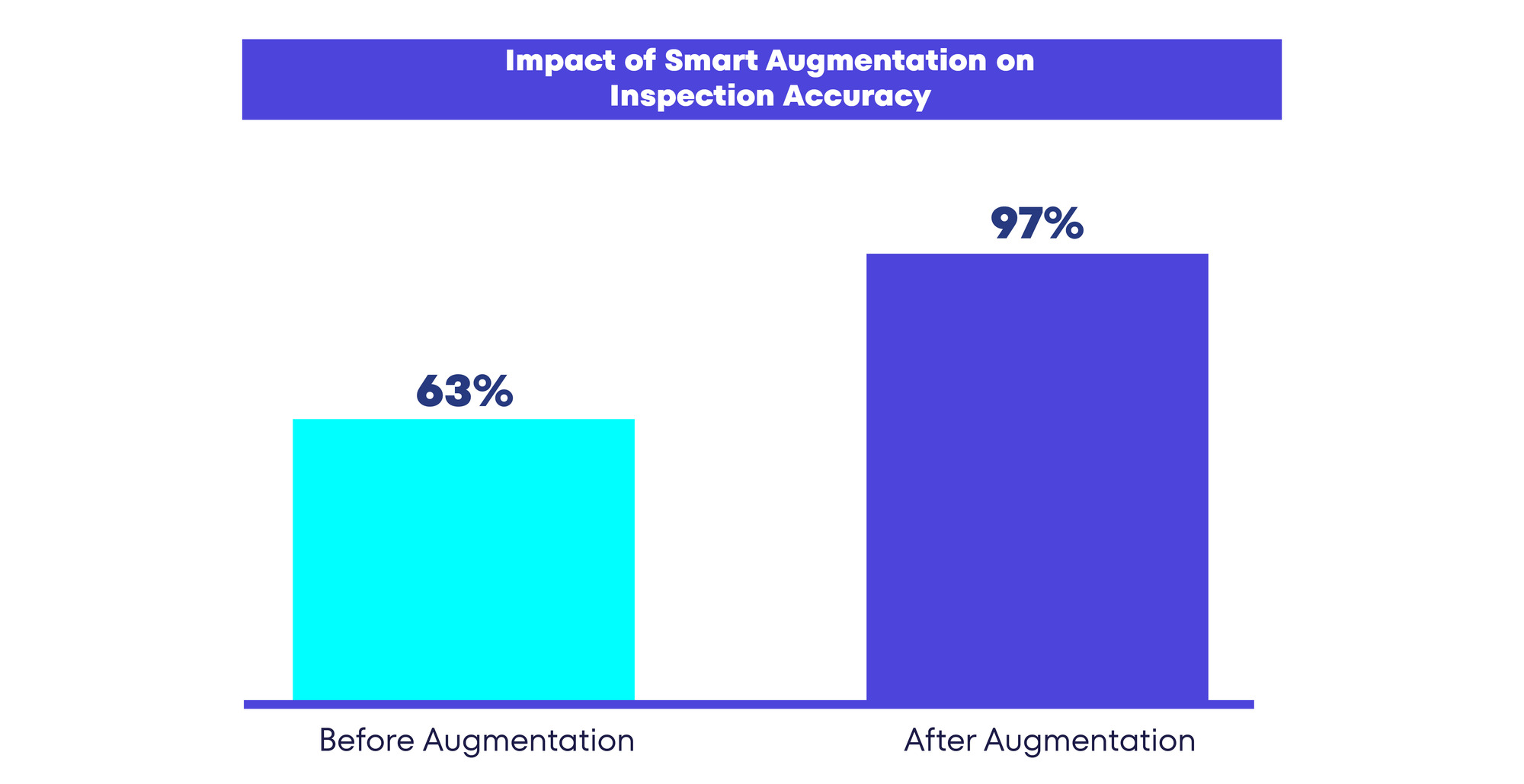

One of our recent implementations has achieved significant improvements in defect detection accuracy, moving from 63% to 97% through strategic augmentation techniques. The success stems from carefully designed augmentation strategies that address common inspection challenges.

Lighting variations in the augmented dataset help models maintain accuracy across different factory conditions. Position and orientation adjustments ensure reliable detection regardless of part placement. Scale modifications account for size variations in components, creating a more robust inspection system.

These implementations produce measurable operational benefits. False positive rates decrease substantially while maintaining high sensitivity to actual defects. The result: Improved production yields and reduced quality control costs through more reliable automated inspection.

Medical Imaging

The medical imaging sector faces unique challenges in data collection and usage due to privacy requirements and limited availability of pathology examples.

Data augmentation provides a solution by generating additional training examples while maintaining patient privacy.

Medical implementations focus on preserving critical diagnostic features during augmentation. This includes careful modification of image characteristics without altering the underlying pathological indicators.

The approach allows for expansion of training datasets, which is particularly beneficial for rare conditions where real examples are scarce.

Autonomous Vehicles

Autonomous vehicle systems require extensive training data covering various operational conditions. Data augmentation helps create comprehensive training sets that include different weather conditions, lighting situations, and object positions.

This systematic approach improves system reliability across varying environmental conditions.

Security Systems

Security applications benefit from augmented datasets that simulate different monitoring scenarios. The primary focus remains on maintaining detection accuracy across variable lighting conditions and partial occlusions.

This leads to more reliable security monitoring systems that perform consistently in real-world conditions.

Advanced Considerations and Optimization Strategies

Data augmentation, while a powerful technique, presents unique challenges, particularly when dealing with limited data, imbalanced datasets, or complex image characteristics.

Addressing Edge Cases in Data Augmentation

Several factors can impact data augmentation’s effectiveness:

Limited Data Scenarios

When obtaining sufficient data is difficult or expensive, traditional augmentation may be insufficient. Modern AI software solutions address this by leveraging generative AI to create contextual augmentations of images and defects.

This enables model building with minimal initial data, particularly beneficial for rare defect types.

Highly Imbalanced Datasets

Manufacturing often involves datasets where normal samples significantly outnumber defects.

Advanced techniques address this by selectively applying augmentation to minority classes or using methods that intelligently synthesize realistic variations of rare defect types to balance the training data.

Complex Image Characteristics

Manufacturing environments often present complex image characteristics (variable lighting, reflective surfaces, intricate geometries).

Advanced solutions use manufacturing-specific augmentation parameters to preserve critical defect features while introducing beneficial variations.

Sophisticated augmentation pipelines, combining multiple techniques, generate realistic and relevant examples.

Optimizing Data Augmentation for Efficiency and Scalability

Efficient and scalable data augmentation is crucial for real-world applications.

Effective strategies include:

Pipeline Efficiency

Real-time processing minimizes the impact on inspection speeds, maintaining high throughput.

This involves seamless integration with existing hardware, optimized image stream processing, minimal latency, and consistent processing speeds.

Resource Management

Intelligent resource allocation based on inspection demands optimizes performance and cost-effectiveness.

Selective retention of augmented examples based on their value further optimizes storage usage.

Scalability

Flexible deployment options (cloud and on-premises) and support for multiple data sources allow organizations to scale their implementations according to their specific needs.

Implementing Data Augmentation: A Practical Guide

Planning Phase: Assessment and Resource Allocation

Before beginning implementation, a thorough assessment is crucial.

This includes:

1. Data Assessment

Evaluate existing data for quality (noise, missing values), size (sufficiency for training), and class distribution (identifying imbalances).

Understanding class imbalances is particularly important, as it may require the use of specific augmentation techniques to address these imbalances.

2. Operational Requirements

Define processing speed needs and integration points with existing systems.

For instance, real-time augmentation during training may necessitate more powerful hardware than offline augmentation.

3. Resource Planning

Determine hardware (e.g., existing cameras and computational resources), software (AI tools and interfaces), and personnel (team members for implementation and maintenance) requirements.

4. Timeline Definition

Establish a realistic timeline encompassing initial setup, model training and validation, system integration testing, and production deployment.

Consider factors such as dataset size, model complexity, and hardware capabilities when estimating time requirements.

Development Phase: Setup, Configuration, and Testing

This phase involves:

1. Setup

Install necessary software components, configure data pipelines, and establish communication with existing inspection hardware.

2. Configuration

Optimize augmentation parameters for specific needs, focusing on data input/output, processing parameters, integration points, and performance monitoring thresholds.

Experimentation and careful adjustment are crucial to finding the optimal parameter settings.

3. Testing

Validate augmentation effectiveness and system performance through augmentation quality verification, performance metric validation, system integration testing, and operational speed confirmation.

A robust testing strategy includes baseline comparisons (before and after augmentation) and cross-validation techniques.

Deployment and Maintenance: Ensuring Ongoing Success

Successful deployment and sustained performance require:

1. Integration

Incorporate augmented data processing seamlessly into existing workflows.

This often involves careful consideration of data formats and integration with existing software and hardware.

2. Monitoring

Implement real-time performance tracking and feedback mechanisms to continuously assess system effectiveness and identify improvement opportunities.

This includes tracking performance metrics, system health, resource utilization, and quality control metrics.

3. Maintenance

Regular performance reviews, model updates based on new data, system optimization adjustments, and periodic validation checks are crucial for maintaining optimal performance.

Build Better Models With Less Data

Achieve 97% accuracy within two months.

REQUEST FREE DEMO NOW

Frequently Asked Questions

How often should augmentation parameters be adjusted during ongoing operations?

Augmentation parameters should be reviewed monthly during initial deployment, then quarterly once stable performance is achieved. Additional reviews become necessary when introducing new product lines or when detecting novel defect types. Parameters may require adjustment based on seasonal variations in manufacturing conditions or changes in quality requirements.

Does data augmentation impact model inference speed in production?

When properly implemented, data augmentation affects only the training phase and has no impact on production inference speeds. The trained model maintains consistent processing times regardless of the augmentation techniques used during training.

Conclusion

Achieving the kind of precision that manufacturing requires demands high-quality data in abundance. But when defect examples are scarce, and inspection accuracy lags, data augmentation emerges as a game-changer.

By systematically enhancing your existing datasets, you can significantly improve model performance, leading to substantial improvements in accuracy, efficiency, and overall productivity.

From simple geometric transformations to sophisticated AI-driven techniques, data augmentation empowers you to build robust image classification systems.

The results speak for themselves: accuracy rates increasing from 63% to 97%, project timelines reduced by 78%, and substantial reductions in false positives.

Averroes.ai’s Smart Augmentation tool simplifies this process, requiring minimal data to get started. Our AI Engine builds custom models with little effort beyond initial labeling, while our flexible deployment options ensure seamless integration with existing systems.

Ready to improve your quality control processes? Request a free demo and find out how our advanced augmentation capabilities can boost your inspection accuracy.
