High voltage, high stakes: traditional inspections can lead to deadly shocks.
But with drones, you can short-circuit those risks and save up to 60% in costs.
The power to transform inspections is rooted in precision, not peril.
Drones don’t just minimize danger; they boost data accuracy, extending infrastructure lifespan and preventing costly repairs.
Follow our step-by-step guide to master drone technology, ensuring seamless and safety-driven operations.
Keep the lights on—efficiently, reliably, and risk-free.
Key Notes
Drones enhance power line inspections by boosting safety and efficiency.
Inspection costs can be cut by up to 60% using drones.
Drones provide high-resolution and thermal imaging for precise anomaly detection.
Regular drone inspections help minimize outages and extend infrastructure lifespan.
How Drones Work For Power Line Inspections
UAV Technology and Components

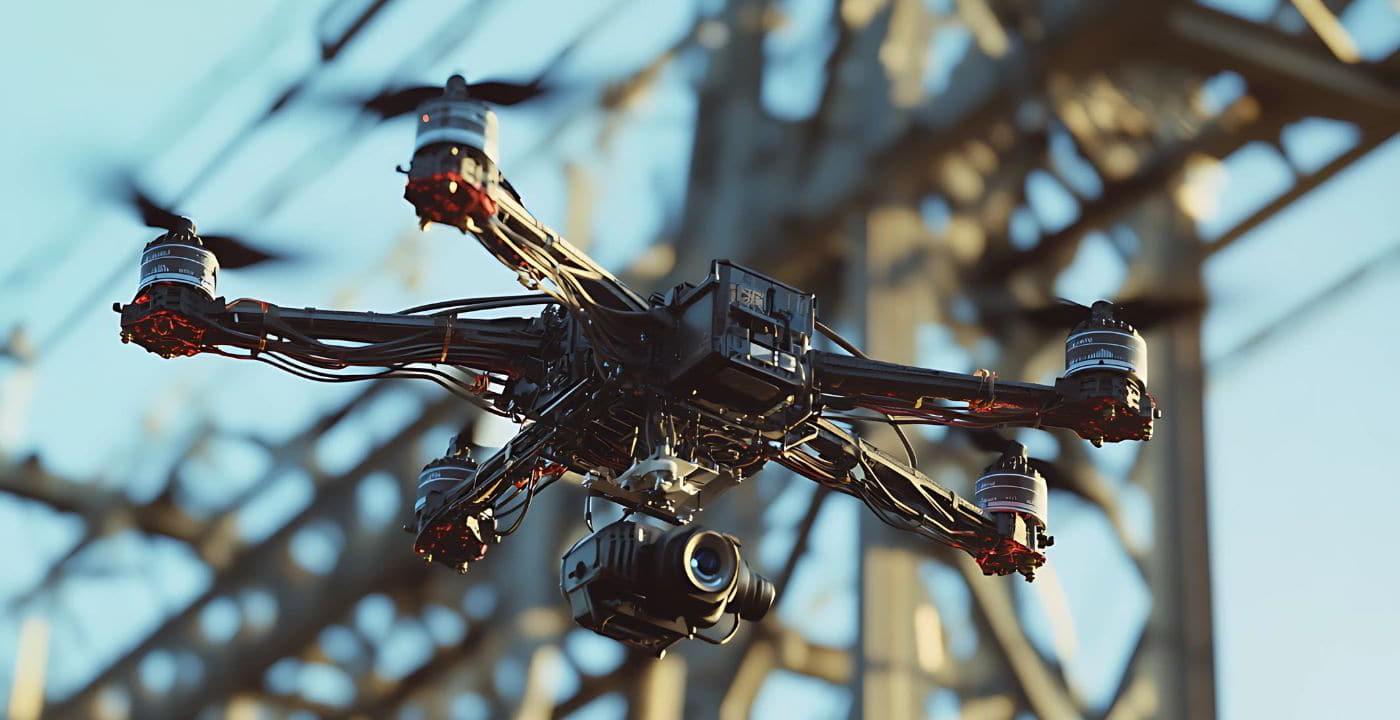

Modern drones designed for power line inspections come with a range of sophisticated technologies that make them highly effective for this crucial task.
Here are the different types of drones you might consider:
Fixed-Wing Drones
These drones resemble traditional airplanes and excel at covering large distances.
They are best used for transmission line inspections, where long stretches of power lines need evaluation.
Key Features
Long flight time allows for expansive coverage.
High stability, making them reliable even in windy conditions.
Ability to carry heavier payloads, such as LiDAR sensors, for detailed mapping.
Multirotor Drones
These drones possess multiple rotors—typically four or more—making them highly maneuverable.
They are particularly suited for distribution line inspections, which require careful navigation around towers and other structures.
Key Features
Vertical takeoff and landing (VTOL) capabilities.
Hovering ability, providing precision for capturing images at various angles.
Exceptional maneuverability for detailed examinations.
Hybrid Drones
Combining the attributes of both fixed-wing and multirotor designs, hybrid drones bring flexibility to the table.
They are ideal for complex inspection scenarios where both long-distance travel and precision flying are needed.
Key Features
Extended flight range paired with VTOL capabilities allows them to handle a variety of inspection tasks.
Versatility in navigating both lengthy power lines and tight areas around structures.
Key Features to Look for in a Drone
Payload Capacity: Ensure the drone can support necessary equipment, like high-resolution cameras, thermal sensors, and LiDAR systems.
Flight Time: Aim for models that can fly for over 30 minutes to cover extensive areas without needing to recharge.
Camera Quality: High-resolution RGB cameras are crucial for visual inspections, while thermal imaging helps in detecting overheating issues or faults.
Maneuverability: Look for drones capable of taking clear pictures from various angles and stable enough for crisp image capture.
GPS Accuracy: High-precision GPS systems, such as Real-Time Kinematic (RTK) GPS, will improve localization accuracy during inspections.
Obstacle Avoidance Systems: Drones equipped with advanced sensors help navigate around power lines and other obstacles safely.
Importance of Ferromagnetic Shielding
When inspecting high-voltage power lines, selecting drones with ferromagnetic shielding is critical.
Here’s why:
Interference Reduction
High-voltage environments can generate electromagnetic interference (EMI) that disrupts drone operations.
Drones equipped with ferromagnetic shielding can handle such interference effectively, ensuring stable flight and reliable data collection.
Safety Assurance
This shielding protects the drone’s electronics from damage caused by EMI, which reduces the risk of malfunctions during critical inspections.
You want your equipment to function at its best, especially when navigating hazardous areas.
Operational Reliability
Drones that maintain connectivity and performance near power lines enhance inspection efficiency and safety.
You’ll be able to trust your equipment, leading to better results from your inspections.
Benefits of Using Drones for Power Line Inspections
Enhanced Safety Measures
When it comes to inspecting power lines, safety should always be the top priority.
Traditional inspection methods often put workers in risky situations—whether that means clambering up towers or navigating dangerous terrain near high-voltage equipment.
Drones take personnel out of harm’s way by providing an aerial view without the need for humans to be physically present.
This technology allows UAVs to soar high above power lines, quickly and efficiently assessing situations that would otherwise be hazardous.
The outcome? A significant reduction in workplace accidents and enhanced safety for your team.
Cost Efficiency Analysis
Drones can dramatically cut costs associated with power line inspections. Traditional methods often involve expensive helicopters or substantial ground crews, but UAVs streamline the entire process.
You save on labor, equipment, and time—all while getting more inspected in less time. This translates to quicker maintenance and fewer outages.
For utility companies, adopting drones means better budget management, allowing for strategic investments elsewhere in the business.
Improved Data Collection and Accuracy
One of the most compelling reasons to consider drones is their ability to gather high-resolution images and thermal data that manual inspections often overlook.
With advanced imaging technology, drones can identify anomalies, like overheating components or structural defects, in just a matter of minutes.
This precision enhances the quality of inspections and yields valuable data for predictive maintenance.
By addressing potential issues before they escalate, drones help improve the reliability of power delivery and keep the lights on for everyone.
Obtain a Remote Pilot Certificate to operate commercially.
Fly within visual line of sight (VLOS); staying under 400 feet altitude unless near a structure.
Avoid flying over people unless you get a waiver.
State and Local Compliance:
Familiarize yourself with state and local laws—these may impose additional restrictions on drone flights near critical infrastructure like power lines.
New policies support BVLOS operations, allowing drones to work in less populated areas.
Operators must have specific training and licensing to ensure safe flight.
Training and Certification for Operators
Effective drone operation requires training.
Key points include:
Essential Training: Enroll in specialized courses focusing on drone operations specific to power line inspections.
Skills Development: Training ensures operators are prepared to handle complex situations and maximize operational efficiency.
Step-by-Step Guide on How to Inspect Power Lines with Drones
Inspecting power lines with drones can vastly improve efficiency and safety, but a systematic approach is essential for success.
Here are the manageable steps to guide you through pre-inspection planning, execution, and post-inspection analysis:
Pre-Inspection Planning
Site Assessment
Identify Inspection Areas: Focus on specific sections of power lines needing attention based on previous inspection reports or maintenance schedules.
Conduct Risk Assessments: Evaluate potential hazards in the vicinity, such as overhanging branches, electrical hazards, and changing weather conditions.
Team Coordination
Engage Stakeholders: Communicate and align with all team members, from drone pilots to data analysts. A well-informed team can respond swiftly to any issues that arise during inspections.
Assign Roles: Designate clear responsibilities to team members—this could include the drone pilot, visual data collector, and safety monitor—to streamline operations.
Flight Planning
Create a Detailed Flight Plan: Outline flight paths, altitudes, specific points of interest (POIs) along the power lines, and emergency landing zones.
Obtain Necessary Permissions: Don’t forget to garner any required permits or authorizations from local aviation authorities. Following the rules keeps inspections efficient and lawful.
Equipment Preparation
Choose the Right Drone: Select a drone that suits your inspection needs, factoring in payload capacity and desired features—think thermal imaging and high-resolution cameras.
Conduct Pre-Flight Checks: Inspect the drone meticulously, ensuring battery levels, propeller condition, and camera settings are all optimal for flight.
Conducting the Inspection: Best Practices
You’re ready to take flight! Here’s how to maximize your inspection’s efficacy
Execution of Inspection
Launch the Drone Safely: Start the flight in an open area, free from obstructions, after verifying all systems are go.
Capture Data: Utilize high-resolution cameras to take detailed images of power lines and equipment from various angles. Employ thermal imaging to uncover issues not visible to the naked eye. This could mean spotting overheating components that need immediate attention.
Flight Techniques
Smooth Maneuvering: Keep the drone steady and fly close to the power lines while respecting safety distances. Smooth movements help capture clear, high-quality images.
Multiple Perspectives: Capture imagery from various angles—side views, top-down shots—to ensure comprehensive coverage of your inspection area.
Post-Inspection Data Analysis
You’ve flown and gathered data. Now it’s time to dive into the details—here’s how to manage what you’ve collected:
Data Management
Organize Collected Data: Systematically label and categorize images and data for easy retrieval. You want to be able to locate specific images quickly, especially for urgent maintenance needs.
Utilize Specialized Software: Employ tools like drone data analysis software to process and analyze findings effectively. This helps identify anomalies or defects quickly.
Reporting Findings
Generate Comprehensive Reports: Include visual evidence alongside detailed findings in your reports.
Make Recommendations: Be transparent about what you’ve observed. A good report can help prioritize repairs and track inspection history.
Review and Feedback
Team Debriefing: After inspections, gather the team to discuss successes and areas for improvement. Did you encounter any unexpected challenges? Find patterns that could inform future flights.
Continuous Improvement: Use feedback to refine processes, update flight plans, or tweak equipment choices as necessary for subsequent inspections.
Power Line Inspection Costs
Let’s talk numbers—specifically, how drones are shaking up traditional power line inspections.
Georgia Power Transmission Co. found it could save up to 60% annually by integrating drones into their workflows.
Sounds great, right? Yet, costs aren’t always black and white.
Yes, drones cut operational costs and speed up inspections, but they still have their limitations. While drones can easily spot a defect on a pole, they can’t hammer it back into shape.
And that’s where traditional crews come into play.
Sometimes, that mix of digital and on-the-ground work is what keeps the power flowing smoothly.
Breakdown of Costs: Drone vs. Traditional Methods
The cost of power line inspections can vary dramatically between conventional methods and using drones.
Helicopter Inspections: These can set you back anywhere from $4,000 to $30,000 per day, depending on the complexity and duration of the job. Inspecting just one transmission tower can take multiple days and cost around $5,000.
Labor Intensive: These methods involve considerable manpower, including skilled workers and logistics, adding up travel and transport costs to the mix.
Drone Inspection Costs
Cheaper Alternatives: Drone inspections usually fall between $1,000 and $5,000 per day.
Speedy Operations: Drones can typically complete inspections in a few hours. This quick turnaround not only saves you money but also avoids disrupting regular operations.
Reduced Labor Needs: Fewer personnel are required for drone inspections, significantly lowering your labor costs.
Implementing drones can cut inspection costs and reduce the potential costs associated with outages that can result from undetected issues down the line.
Flight Planning
Create a Detailed Flight Plan: Outline flight paths, altitudes, specific points of interest (POIs) along the power lines, and emergency landing zones.
Obtain Necessary Permissions: Don’t forget to garner any required permits or authorizations from local aviation authorities. Following the rules keeps inspections efficient and lawful.
Long-Term Cost Benefits of Drone Inspections
Investing in drone technology does not merely save money upfront; it also leads to significant long-term benefits:
Efficiency Gains
Drones help minimize downtime for repairs and maintenance, enhancing service reliability.
Predictive Maintenance
Continuous data collection from drone inspections allows utilities to address potential issues proactively.
By catching problems early, you can avoid costly outages and extend the lifespan of your infrastructure.
Strategic Implementation
By incorporating regular drone inspections into your maintenance strategy, you can optimize operational costs and make informed, data-driven decisions.
When it comes to inspecting power lines, timing is everything.
The frequency of inspections typically hinges on several factors, including state regulations, the condition of the infrastructure, and company policies.
Here’s a quick rundown:
Standard Inspection Frequency
Most utility companies conduct inspections on transmission lines annually or biannually.
Regular check-ups are vital—they help catch any wear and tear before they snowball into bigger issues.
Weather Considerations
Severe weather can throw a wrench in the works.
After storms or harsh conditions, inspections may need to ramp up to ensure everything is still in top shape.
Drones excel here—they allow utilities to be proactive, swooping in quickly to assess potential damage and reduce risks associated with failures.
Frequently Asked Questions
What types of drones are best for power line inspections?
The best drones for power line inspections are those with high-resolution visual cameras and thermal imaging capabilities. Popular choices include the DJI Matrice 300 RTK and Autel EVO 2 Dual 640T for their robust performance and long flight times.
How do drones improve safety during power line inspections?
Drones improve safety during power line inspections by reducing the need for personnel to work near high-voltage lines or heights. They cover difficult terrain efficiently, minimizing the risk of accidents and allowing crews to focus on repairs.
What regulations should companies be aware of when using drones for inspections?
Companies should be aware that regulations vary by region but typically include compliance with aviation authority requirements. This can involve obtaining licenses for operators, securing permissions for flights, and adhering to altitude and no-fly zone regulations.
Conclusion
Drone technology is changing how power line inspections are conducted, offering both increased safety and significant cost savings.
By using drones, companies can cut inspection expenses by as much as 60% while also enhancing data quality with advanced imaging like high-resolution and thermal capabilities.
With drones, inspection teams can work remotely, minimizing the need for high-risk manual checks and providing a more efficient, accurate approach to identifying and preventing issues.
Ready to supercharge your power line inspections? With Averroes.ai, you can integrate any drone to analyze, detect, and classify defects and anomalies, processing up to 400,000 images a day. Request a free demo now to streamline your inspection process and improve reliability.
![Drone Power Line Inspections [Pro Guide]](/_next/image?url=https%3A%2F%2Fhvp.44e.myftpupload.com%2Fwp-content%2Fuploads%2F2024%2F10%2FDrone-Power-Line-Inspections.jpg&w=3840&q=75)
High voltage, high stakes: traditional inspections can lead to deadly shocks.
But with drones, you can short-circuit those risks and save up to 60% in costs.
The power to transform inspections is rooted in precision, not peril.
Drones don’t just minimize danger; they boost data accuracy, extending infrastructure lifespan and preventing costly repairs.
Follow our step-by-step guide to master drone technology, ensuring seamless and safety-driven operations.
Keep the lights on—efficiently, reliably, and risk-free.
Key Notes
How Drones Work For Power Line Inspections
UAV Technology and Components
Modern drones designed for power line inspections come with a range of sophisticated technologies that make them highly effective for this crucial task.
Here are the different types of drones you might consider:
Fixed-Wing Drones
These drones resemble traditional airplanes and excel at covering large distances.
They are best used for transmission line inspections, where long stretches of power lines need evaluation.
Key Features
Multirotor Drones
These drones possess multiple rotors—typically four or more—making them highly maneuverable.
They are particularly suited for distribution line inspections, which require careful navigation around towers and other structures.
Key Features
Hybrid Drones
Combining the attributes of both fixed-wing and multirotor designs, hybrid drones bring flexibility to the table.
They are ideal for complex inspection scenarios where both long-distance travel and precision flying are needed.
Key Features
Key Features to Look for in a Drone
Importance of Ferromagnetic Shielding
When inspecting high-voltage power lines, selecting drones with ferromagnetic shielding is critical.
Here’s why:
Interference Reduction
High-voltage environments can generate electromagnetic interference (EMI) that disrupts drone operations.
Drones equipped with ferromagnetic shielding can handle such interference effectively, ensuring stable flight and reliable data collection.
Safety Assurance
This shielding protects the drone’s electronics from damage caused by EMI, which reduces the risk of malfunctions during critical inspections.
You want your equipment to function at its best, especially when navigating hazardous areas.
Operational Reliability
Drones that maintain connectivity and performance near power lines enhance inspection efficiency and safety.
You’ll be able to trust your equipment, leading to better results from your inspections.
Benefits of Using Drones for Power Line Inspections
Enhanced Safety Measures
When it comes to inspecting power lines, safety should always be the top priority.
Traditional inspection methods often put workers in risky situations—whether that means clambering up towers or navigating dangerous terrain near high-voltage equipment.
Drones take personnel out of harm’s way by providing an aerial view without the need for humans to be physically present.
This technology allows UAVs to soar high above power lines, quickly and efficiently assessing situations that would otherwise be hazardous.
The outcome? A significant reduction in workplace accidents and enhanced safety for your team.
Cost Efficiency Analysis
Drones can dramatically cut costs associated with power line inspections. Traditional methods often involve expensive helicopters or substantial ground crews, but UAVs streamline the entire process.
You save on labor, equipment, and time—all while getting more inspected in less time. This translates to quicker maintenance and fewer outages.
For utility companies, adopting drones means better budget management, allowing for strategic investments elsewhere in the business.
Improved Data Collection and Accuracy
One of the most compelling reasons to consider drones is their ability to gather high-resolution images and thermal data that manual inspections often overlook.
With advanced imaging technology, drones can identify anomalies, like overheating components or structural defects, in just a matter of minutes.
This precision enhances the quality of inspections and yields valuable data for predictive maintenance.
By addressing potential issues before they escalate, drones help improve the reliability of power delivery and keep the lights on for everyone.
Ready To Spot Anomalies Faster Than Ever?
Considerations Before Implementing Drone Inspections
Regulatory Compliance and Legal Requirements
Before you launch those drones over the power lines, understanding regulatory compliance is essential.
Here’s what you need to know:
United States
FAA Regulations (Part 107):
State and Local Compliance:
United Kingdom
CAA Guidelines:
Training and Certification for Operators
Effective drone operation requires training.
Key points include:
Step-by-Step Guide on How to Inspect Power Lines with Drones
Inspecting power lines with drones can vastly improve efficiency and safety, but a systematic approach is essential for success.
Here are the manageable steps to guide you through pre-inspection planning, execution, and post-inspection analysis:
Pre-Inspection Planning
Site Assessment
Team Coordination
Flight Planning
Equipment Preparation
Conducting the Inspection: Best Practices
You’re ready to take flight! Here’s how to maximize your inspection’s efficacy
Execution of Inspection
Flight Techniques
Post-Inspection Data Analysis
You’ve flown and gathered data. Now it’s time to dive into the details—here’s how to manage what you’ve collected:
Data Management
Reporting Findings
Review and Feedback
Power Line Inspection Costs
Let’s talk numbers—specifically, how drones are shaking up traditional power line inspections.
Georgia Power Transmission Co. found it could save up to 60% annually by integrating drones into their workflows.
Sounds great, right? Yet, costs aren’t always black and white.
Yes, drones cut operational costs and speed up inspections, but they still have their limitations. While drones can easily spot a defect on a pole, they can’t hammer it back into shape.
And that’s where traditional crews come into play.
Sometimes, that mix of digital and on-the-ground work is what keeps the power flowing smoothly.
Breakdown of Costs: Drone vs. Traditional Methods
The cost of power line inspections can vary dramatically between conventional methods and using drones.
Here’s a quick snapshot:
Traditional Inspection Costs
Drone Inspection Costs
Implementing drones can cut inspection costs and reduce the potential costs associated with outages that can result from undetected issues down the line.
Flight Planning
Long-Term Cost Benefits of Drone Inspections
Investing in drone technology does not merely save money upfront; it also leads to significant long-term benefits:
Efficiency Gains
Drones help minimize downtime for repairs and maintenance, enhancing service reliability.
Predictive Maintenance
Continuous data collection from drone inspections allows utilities to address potential issues proactively.
By catching problems early, you can avoid costly outages and extend the lifespan of your infrastructure.
Strategic Implementation
By incorporating regular drone inspections into your maintenance strategy, you can optimize operational costs and make informed, data-driven decisions.
Spot Every Anomaly, Every Single Time
How Often Are Transmission Lines Inspected?
When it comes to inspecting power lines, timing is everything.
The frequency of inspections typically hinges on several factors, including state regulations, the condition of the infrastructure, and company policies.
Here’s a quick rundown:
Standard Inspection Frequency
Most utility companies conduct inspections on transmission lines annually or biannually.
Regular check-ups are vital—they help catch any wear and tear before they snowball into bigger issues.
Weather Considerations
Severe weather can throw a wrench in the works.
After storms or harsh conditions, inspections may need to ramp up to ensure everything is still in top shape.
Drones excel here—they allow utilities to be proactive, swooping in quickly to assess potential damage and reduce risks associated with failures.
Frequently Asked Questions
What types of drones are best for power line inspections?
The best drones for power line inspections are those with high-resolution visual cameras and thermal imaging capabilities. Popular choices include the DJI Matrice 300 RTK and Autel EVO 2 Dual 640T for their robust performance and long flight times.
How do drones improve safety during power line inspections?
Drones improve safety during power line inspections by reducing the need for personnel to work near high-voltage lines or heights. They cover difficult terrain efficiently, minimizing the risk of accidents and allowing crews to focus on repairs.
What regulations should companies be aware of when using drones for inspections?
Companies should be aware that regulations vary by region but typically include compliance with aviation authority requirements. This can involve obtaining licenses for operators, securing permissions for flights, and adhering to altitude and no-fly zone regulations.
Conclusion
Drone technology is changing how power line inspections are conducted, offering both increased safety and significant cost savings.
By using drones, companies can cut inspection expenses by as much as 60% while also enhancing data quality with advanced imaging like high-resolution and thermal capabilities.
With drones, inspection teams can work remotely, minimizing the need for high-risk manual checks and providing a more efficient, accurate approach to identifying and preventing issues.
Ready to supercharge your power line inspections? With Averroes.ai, you can integrate any drone to analyze, detect, and classify defects and anomalies, processing up to 400,000 images a day. Request a free demo now to streamline your inspection process and improve reliability.
Experience the Averroes AI Advantage
Elevate Your Visual Inspection Capabilities
Request a Demo Now
