Top 10 Semiconductor Foundries [2026]

The semiconductor foundries market crossed $266 billion this year, growing at roughly 7.5% CAGR while AI accelerators and HBM demand redraw the leading-edge capacity map.

TSMC’s N2 slots are sold out through Q2 2027. Samsung’s 2 nm GAA is in mass production. Intel Foundry’s backlog cleared $15 billion. SMIC is being rationed by Beijing to serve Huawei.

Picking the wrong foundry partner in 2026 means missing your product window or watching your margins evaporate to AI accelerator allocations.

Here’s a breakdown of the 10 leading chip foundries – what they can fabricate today, who gets first call on capacity, and where the geopolitical pressure points sit.

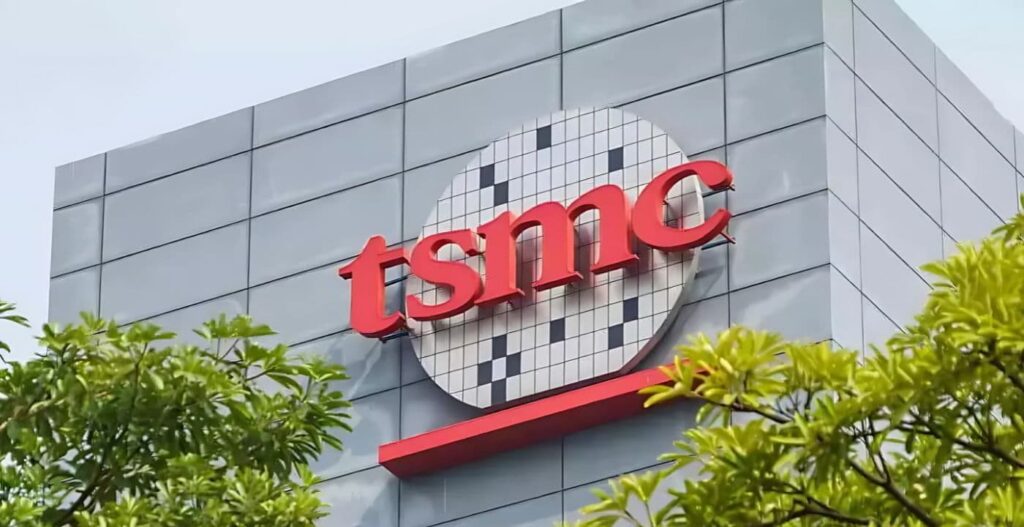

1. Taiwan Semiconductor Manufacturing Company (TSMC)

Best for AI, HPC, and flagship mobile SoCs at leading edge

TSMC isn’t just the largest among foundry semiconductor companies – it’s roughly 60% of the global foundry market and over 90% of leading-edge production.

If you’re designing an AI accelerator, a flagship phone SoC, or anything that needs N3/N2-class density, this is where the conversation starts and usually ends.

Process Node Leadership

TSMC is in volume production on N2 as of late 2025, having moved from FinFET to gate-all-around nanosheet transistors.

The headline numbers versus N3E: 10–15% performance uplift or 25–30% power reduction, with >15% density gain. N2P with backside power delivery is targeted for around 2026, followed by A16 and a newly introduced A13 variant aimed at AI and HPC workloads.

Yield data stays closely guarded, but the directional read is positive. Apple, Nvidia, and AMD flagships are now running on N3/N3E/N3P at volumes that wouldn’t be feasible without mature yields. The Q1 2026 financials back this up: net income jumped 58% year-on-year to a record NT$572.5 billion with gross margin around 66.2%.

Capacity & Allocation Reality

• Tier 1 anchors (Apple ~23–25% of revenue, Nvidia 6–10%, then Broadcom, Qualcomm, AMD) get earliest access and largest guaranteed allocations.
• Tier 2 large fabless and IDMs (MediaTek, Marvell, Sony, Amazon) get substantial but negotiated allocations.
• Tier 3 customers get pushed to second-wave variants (N3E/N3P instead of first-wave N3B, N5/N4 instead of N3).

N2 capacity is reportedly booked through Q2 2027. TSMC has tightened commercial terms: customers now lock capacity and pay roughly six months in advance, with cross-generational allocation rules prioritizing strategic programs.

Geopolitical Exposure

Taiwan produces more than 60% of global chips.

Taiwan’s government mandates that true cutting-edge R&D and manufacturing remain in Taiwan, so even as TSMC builds fabs in Arizona, Kumamoto, and Dresden, the tip of the spear stays on the island.

Arizona Fab 2 targets 3 nm in 2H 2027. Kumamoto reaches 3 nm around 2028.

Anyone running multi-foundry strategies to hedge Taiwan risk is making a sensible call.

2. Samsung Electronics

Best for AI accelerators needing tight logic-memory integration

Samsung Foundry is the clear #2 in advanced nodes – technically aggressive on GAA, structurally advantaged by sitting next to the world’s largest memory operation, but with more variability in yields and a more selective customer roster than TSMC.

Process Node Leadership

Samsung beat TSMC to gate-all-around.

Its 3 nm GAA (MBCFET) entered production in 2022, claiming up to:

• 45–50% lower power
• ~23–30% higher performance
• ~16–35% area shrink versus 5 nm

The company has now officially entered mass production on 2 nm GAA (SF2), making it the first to start volume manufacturing of 2 nm-class nanosheet transistors in calendar terms.

Yield Reality Is More Nuanced…

Samsung acknowledged that 3 nm logic yield “approached a similar level” to its 4 nm process as maturity improved (implying early yield issues that converged toward a stable baseline).

Historical reports suggested 4/5 nm EUV lagged TSMC, hurting early Snapdragon programs, but Tesla’s AI5 chip running on Samsung’s SF2T process and Nvidia evaluating SF2 capacity at the new Taylor, Texas fab signal that yields are now production-grade.

Capacity & Allocation Reality

Samsung’s “Shell-First” strategy pre-builds cleanroom shells so equipment can be installed quickly, supporting a public commitment to more than triple advanced-node capacity (3/2/1.4 nm) by around 2027.

The Taylor, Texas Fab Is Attracting Customers Specifically Looking Beyond TSMC…

• Tier 1 anchors (Qualcomm, Nvidia, Apple, Tesla, large AI chip partners) get earliest access to SF3/SF2 and preferential placement at Taylor when they commit to multi-year volumes.
• Samsung typically has slightly more headroom at advanced nodes than TSMC because its market share is smaller.

Geopolitical Exposure

Less concentrated than Taiwan-only TSMC, but still heavily exposed to Northeast Asian dynamics. Korea is deeply tied economically to China, security-tied to the US, and dependent on Japan for critical materials.

3. Intel Foundry

Best for sovereign US/EU manufacturing at advanced nodes

Intel’s foundry pivot is the most interesting development in the chip foundry companies landscape.

Once synonymous with manufacturing leadership, then years of delays, now back in the leading-edge conversation with 18A in production and a backlog exceeding $15 billion.

Process Node Leadership

Intel 18A introduces both GAA RibbonFET and PowerVia backside power delivery – Intel beat both TSMC and Samsung to combining these technologies.

Intel 18A-PT is specifically optimized for AI/HPC and 3DIC with TSVs, hybrid bonding, and very fine-pitch interconnect. The roadmap continues to 14A, also using GAA and backside power, targeting sub-2 nm-class performance.

Capacity & Allocation Reality

External foundry is new for Intel, so allocation works differently than TSMC or Samsung:

• Intel works with 7 of the top 10 fabless companies including Nvidia, Qualcomm, Broadcom, Marvell.
• $15+ billion foundry backlog spans custom AI silicon, advanced packaging, and government/defense work.
• Anchor customers (US hyperscalers, top fabless, defense and government programs) get early access and influence over 18A and 14A ramps.

External Customers Have Somewhat More Leverage Than At A Sold-Out Foundry…

Intel wants to win flagship AI and defense programs to validate its nodes, so it’s willing to co-develop and allocate meaningful capacity against anchor wins.

Geopolitical Exposure

Intel’s structural advantage is geographic:

• Fabs in Arizona, Oregon, New Mexico, Ohio, Ireland, plus planned German sites – a deliberately multi-region footprint underwritten by the CHIPS Act and EU Chips Act.
• Less Taiwan and Korea dependence, more constrained on what can ship to China.

For defense, aerospace, and national security buyers, this is a feature, not a bug.

4. GlobalFoundries

Best for mature-node specialty: RF, FD-SOI, automotive, Trusted Foundry

GlobalFoundries exited the 7 nm race in 2018 to focus on “more-than-Moore” (feature-rich nodes targeting applications where transistor density isn’t the constraint).

That decision now looks prescient as automotive, RF, and power semiconductor demand grew faster than expected.

Process Node Leadership

GF’s portfolio runs from 180 nm down to 12 nm FinFET for select customers, with three platform pillars worth knowing:

• FD-SOI (FDX family): 22FDX and 12FDX for low-power, RF, and mixed-signal designs in mobile, 5G, automotive, and IoT.
• RF and analog: RF-SOI, SiGe, and RF CMOS strengthened by the IBM semiconductor acquisition – a leading position in RF silicon.
• Embedded NVM and specialty: eMRAM on 22FDX, embedded flash, power management (BCD), plus emerging GaN and silicon photonics.

“Leading-edge” at GF means leadership in RF, FD-SOI, photonics, GaN, and heterogeneous integration on these nodes.

Capacity & Allocation Reality

GF runs a balanced multi-region network:

• Malta (NY) and Essex Junction (VT) in the US
• Dresden, Germany
• Large Singapore campus

Recent and planned investments include a €1.1 billion Dresden expansion through 2028 and roughly $16 billion in US expansion across facility modernization and AI-oriented silicon photonics R&D.

Geopolitical Exposure

• US-headquartered with fabs in the US, Germany, and Singapore.
• No fabs in China or Taiwan.

GF is the only commercial high-volume foundry with US “Trusted Foundry” designation, making it uniquely attractive for secure government and defense programs that need guaranteed US-based production.

5. United Microelectronics Corporation (UMC)

Best for predictable, mature-node automotive and industrial supply

UMC is the stable middle of the foundry semiconductor market – Taiwan-based, focused on mature and mid-range nodes (40–14 nm) with strong automotive and industrial positioning and sophisticated supply-chain risk management.

Process Node Leadership

UMC’s process portfolio centers on 22/28 nm as its specialty process leadership, used widely in automotive, industrial, networking, display, and IoT.

The 14 nm FinFET node delivers about 50–60% power efficiency improvement vs 28 nm.

The Big Strategic Move Is The Intel Collaboration:

• A jointly developed 12 nm FinFET process running in Intel’s Ocotillo fab in Arizona, expected in production around 2027.
• This gives UMC customers access to a Western FinFET-class platform for mobile, communications infrastructure, and networking – a real differentiator for buyers wanting to hedge Taiwan exposure without going leading-edge.

Capacity & Allocation Reality

• UMC’s 2026 capex runs around $1.5 billion, with roughly 90% directed to 12-inch capacity.
• Q1 2026 commentary shows targeting around 1.305 million wafer starts in Q2.
• Key customers include Texas Instruments, MediaTek, and Realtek, plus a long tail of automotive, industrial, and networking clients.

The Customer Dynamics Differ From TSMC:

Capacity is generally available but contract-driven, with high priority for long-lifecycle automotive, industrial, and networking programs rather than speculative one-off tape-outs.

Once a design qualifies on a UMC process, customers tend to stay for many years.

Geopolitical Exposure

Taiwan-based with associated risk, but UMC runs an unusually structured supply-chain risk monitoring platform (Platform 3.0) tracking critical materials, sourcing regions, weather, earthquakes, pandemics, and geopolitical events.

• The Intel 12 nm partnership adds Western capacity for select products.
• A magnitude 7.4 quake in eastern Taiwan in 2024 temporarily halted production at both TSMC and UMC fabs – a reminder of the structural exposure.

6. Semiconductor Manufacturing International Corporation (SMIC)

Best for China-centric designs requiring domestic fabrication

SMIC is China’s flagship foundry and the center of Beijing’s semiconductor self-sufficiency push.

Strong and expanding at mature nodes, pushing constrained 7 nm-class capacity without EUV, heavily prioritized for domestic Chinese customers (especially Huawei) and deeply exposed to US-China geopolitics.

Process Node Leadership

SMIC offers foundry services from 350 nm down to 7 nm-class technologies, with most commercial volume at 28 nm and above.

The N+1 process:

• improves performance by about 20%
• cuts power by 57%
• reduces logic area by 63% versus 14 nm

Capacity & Allocation Reality

• SMIC grew capacity by about 18% in 2024 while keeping utilization above 80%.
• Management guided adding about 40,000 12-inch-equivalent wafers per month by end of 2026, on top of roughly 50,000 added the prior year.
• Q1 2025 factory utilization hit 89.6%.

Advanced-node capacity is tiny relative to demand and heavily directed:

• Chinese authorities are rationing SMIC’s advanced output, directing capacity toward Huawei as part of state-driven allocation amid AI chip shortages.
• SMIC emerged as a key foundry for Huawei and other sanctioned Chinese firms after TSMC stopped taking their orders.

Geopolitical Exposure

• Added to the US Entity List in 2020 with expanded controls since.
• Export restrictions limit access to advanced equipment (notably EUV), complicate servicing for existing tools, and stretch node migration timelines.

For US, EU, or Japan-based fabless companies, SMIC carries elevated regulatory and reputational risk. For China-centric buyers, it’s increasingly the only realistic local option.

7. Texas Instruments

Best for long-lifecycle analog and embedded for industrial and automotive

TI isn’t a foundry in the TSMC sense as it’s a large analog/embedded IDM running 45–130 nm-class fabs at scale, primarily for its own products.

Worth understanding the distinction before evaluating.

Process Node Leadership

TI exited digital logic process development at 45 nm, choosing to stop internal node scaling and rely on external pure-plays for 32 nm and below where needed.

Today TI focuses its internal manufacturing on analog and embedded products using 45–130 nm processes on 300 mm wafers – explicitly “optimized for analog and embedded” rather than chasing 7 nm/5 nm.

Capacity & Allocation Reality

TI is mid-way through roughly $60 billion in US-centric expansion across seven fabs at three sites: Sherman and Richardson (Texas) plus Lehi (Utah) – all focused on analog and embedded 300 mm wafers.

Geopolitical Exposure

• Heavily US-centric expansion, with strong reshoring momentum.
• Still exposed to US-China trade tensions, export controls, and global materials supply (neon, rare earths, gases).
• Compliance with EAR and ITAR limits what TI can ship to certain foreign customers or for certain applications.

8. Infineon Technologies

Best for automotive power, SiC, GaN, and security MCUs

Infineon is a vertically integrated power, automotive, and security IDM with its own fabs and specialty processes (so, not a general-purpose logic foundry).

Worth knowing what you’re buying: product supplier with selective manufacturing partnerships, not open foundry access.

Process Node Leadership

Core strengths sit in:

• power semiconductors (MOSFETs, IGBTs, SiC, GaN)
• automotive MCUs
• security controllers
• IoT/industrial MCUs

On CMOS logic, Infineon uses 40 nm and 28 nm nodes for security controllers and automotive/IoT MCUs – the SLC26P security controller runs on 28 nm for payment and ID applications.

The Wide-Bandgap Leadership Is The Real Differentiator:

Infineon is the first semiconductor manufacturer to develop 300 mm GaN power wafer technology on existing high-volume infrastructure, significantly increasing potential output per wafer.

SiC capacity gets first call on capital allocation alongside strategic fabs and R&D.

Capacity & Allocation Reality

Manufacturing centered in Europe (Germany and Austria), with strategic 300 mm power and wide-bandgap investments in Europe.

Capital allocation prioritizes strategic fabs, SiC capacity, and R&D (particularly for automotive, industrial power, and renewables).

Geopolitical Exposure

• EU-anchored with global exposure.
• Benefits from the €43 billion European Chips Act.
• US-China and EU-China export controls hit chip sales in 2024.
• Raw material costs rose ~15% in 2024 with Infineon reporting ~10% higher production costs and ~8% higher freight costs from supply chain pressure.

9. NXP Semiconductors

Best for automotive platforms spanning mature to advanced nodes

NXP is a fab-light hybrid IDM: designs mostly automotive and embedded chips, uses a mix of in-house mature fabs and outsourced advanced nodes (TSMC, GlobalFoundries, joint ventures).

Not an open foundry – a platform supplier with smart manufacturing partnerships.

Process Node Leadership

NXP uses in-house fabs for analog and mixed-signal, and outsources advanced digital logic (16/12/7/5/3 nm) to foundries like TSMC and GF.

Public roadmap commentary indicates NXP plans to drive mass adoption of 5 nm and 3 nm process technologies for automotive-grade chips by 2026 – through foundry partners, not its own fabs.

Capacity & Allocation Reality

• NXP holds a top-three global position in automotive semiconductors.
• Capacity allocation flows to its own portfolio first: automotive (MCUs, radar, domain controllers), industrial/IoT, mobile, and secure ID/payment products.
• The Dresden JV pre-allocates 16/12 nm capacity for NXP and partner automotive designs.

You can’t book NXP fab slots as a fabless customer. You become an NXP chip customer or, rarely, a JV or technology partner.

Geopolitical Exposure

• Netherlands-headquartered, operating globally with manufacturing and suppliers primarily in Europe, Japan, and Taiwan.
• Directly exposed to US-China and EU-China trade tensions.
• The Dresden JV and Singapore VSMC fab are explicit attempts to secure localized, geopolitically diverse capacity reducing single-fab dependency.

10. STMicroelectronics

Best for European automotive, industrial, and FD-SOI MCUs

ST is an IDM focused on automotive, industrial, power, and MCUs, with European fabs and a key Samsung FD-SOI partnership. Like NXP and Infineon, it’s a product-centric manufacturer, not an open leading-edge logic foundry.

Process Node Leadership

ST runs a wide range of mature and mid-range CMOS nodes (130/90/65/55/40/28 nm) with digital, mixed-signal, and RF options for analog, power, and microcontroller products.

The Headline Development:

ST is moving its flagship STM32 MCUs to an 18 nm FD-SOI process with embedded phase-change memory (ePCM), developed with Samsung Foundry.

The 18 nm FD-SOI + ePCM process delivers around 50% better performance-per-power than its 40 nm embedded NVM node and 2.5× higher NVM density. ST claims it’s the only sub-20 nm process supporting 3 V operation, enabling integrated analog (power management, reset, clock, ADC) for robust industrial and automotive environments.

Capacity & Allocation Reality

• ST is aggressively expanding 300 mm capacity in Europe at Crolles (France) and Agrate (Italy) to strengthen scale.
• As an IDM, capacity goes to ST’s own products serving automotive, industrial, personal electronics, and communications equipment.

Historically during capacity crunches, ST has prioritized strategic partners and top customers. Major OEMs like Amazon, Apple, Bosch, Continental, Cisco, Nintendo, Samsung, Seagate, and Western Digital are core accounts receiving preferential support.

Geopolitical Exposure

EU-headquartered (Geneva, with major operations in France and Italy) with a diversified supply chain across Europe, Taiwan, Japan, and the US.

Comparison: Top 10 Semiconductor Foundries 2026

Legend:

✔️ Full
⚠️ Partial / limited
❌ Not supported

Where AI Visual Inspection Fits In Semiconductor Manufacturing

Whichever foundry partner you choose, defect detection at submicron scale determines yield economics.

Averroes plugs into existing inspection equipment, feeding AI-driven defect classification and segmentation directly into your process control loop – no new hardware required.

• 99%+ classification accuracy with near-zero false positives
• 40–60% more submicron defects caught versus rule-based inspection
• 20–40 images per defect class to train and deploy in hours
• WatchDog anomaly detection flags novel defects rule-based tools miss

On-prem or air-gapped deployment for fab-grade security and IP protection

Semiconductor Foundries FAQs

What is the difference between a foundry and an IDM?

The difference between a foundry and an IDM comes down to who designs the chips. A pure-play foundry like TSMC fabricates chips designed by other companies (fabless customers). An IDM like Intel, TI, or Infineon designs and manufactures its own chips. Intel and Samsung run hybrid models where they do both.

Which semiconductor foundries can manufacture 2 nm chips?

The semiconductor foundries currently in volume production at 2 nm are TSMC (N2) and Samsung (SF2). Intel’s 18A node is sub-2 nm-class with GAA and backside power delivery, ramping for external customers through 2026. No other foundry has 2 nm-class production today.

Why is TSMC so dominant in the semiconductor foundry market?

TSMC’s dominance in the semiconductor foundry market comes from three compounding advantages: process leadership at leading-edge nodes, deep ecosystem of EDA tools and IP partners, and trust built over decades with fabless customers like Apple, Nvidia, and AMD. The company holds roughly 60% of the global foundry market and over 90% of leading-edge production.

How long does it take to qualify a new semiconductor foundry partner?

Qualifying a new semiconductor foundry partner typically takes 12–18 months for a new node tape-out and significantly longer for automotive-grade qualification. Capacity commitments for advanced nodes like N2 now require booking and prepayment roughly six months in advance, with cross-generational allocation rules favoring strategic programs.

Conclusion

Ten semiconductor foundries, ten different bets on what matters most in 2026.

TSMC owns leading-edge AI and HPC but charges scarcity premiums and concentrates Taiwan risk. Samsung delivers the credible #2 option with tight memory integration and US capacity coming online. Intel Foundry is the sovereign manufacturing play that finally has the technology to back it.

GlobalFoundries and UMC anchor the mature-node and specialty market for buyers who don’t need 3 nm to win. SMIC serves China-centric designs at high regulatory cost. TI, Infineon, NXP, and STMicroelectronics are IDMs to buy from, not tape out at.

Whichever foundry partner you pick, yield economics decide whether your design ships on margin or burns through reserves. Averroes catches 40–60% more submicron defects on your existing inspection equipment – book a free demo to see how AI visual inspection changes your foundry yield math.
